Component Tests and General Diagnostics
Confirmation/Adjustment ModeOPERATION PROCEDURE
1. Start the engine.
2. Turn OFF the audio system.

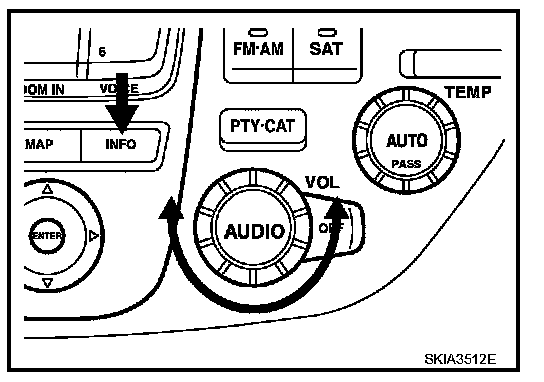

3. While pressing the "INFO" switch, turn volume control dial clockwise or counterclockwise for 30 clicks or more. (When self-diagnosis mode is activated, a short beep will be heard.)
- To return to the previous screen, press "PREV" switch.
4. The initial trouble diagnosis screen is displayed for selecting "self-diagnosis" or "Confirmation/Adjustment" modes.
5. Select "confirmation/Adjustment" In this mode, check and adjustment of each item will become possible.

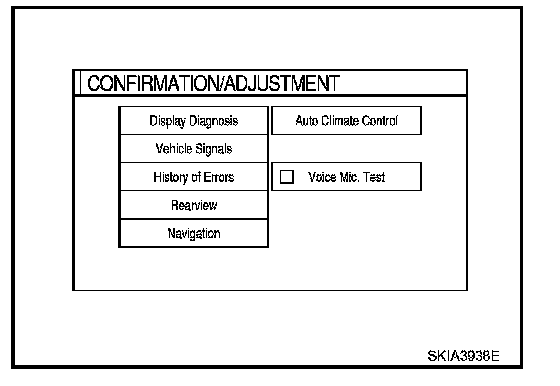

6. Select each switch on the "CONFIRMATION/ADJUSTMENT" screen to display the relevant diagnosis screen.
Side Distance Guideline Correction
- This mode is used to modify the side distance guidelines if they are dislocated from the rear view monitor image, because of variations of body/camera mounting conditions.
Side distance guideline correction procedure
1. Create a correction line to modify the screen.
Draw lines on the rearward of the vehicle passing through the following points: 0.2 m (7.87 inch) from both sides of the vehicle, and
- *1: 0.45 m (1.5 feet)
- *2: 0.91 m (3.0 feet)
- *3: 2.13 m (7.0 feet)
- *4: 3.04 m (10 feet)
and from the rear end of the bumper
2. Select "REARVIEW" in "Confirmation/Adjustment mode".

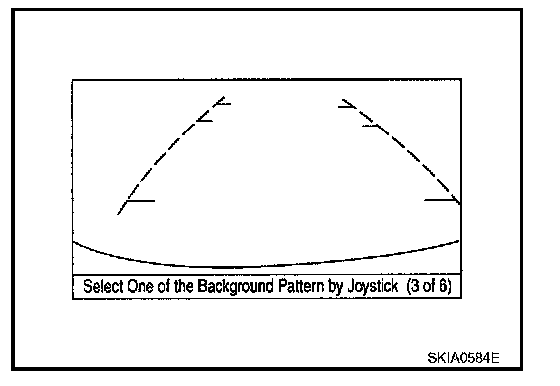

3. Using the joy stick, select the pattern closest to the prepared correction line among the 6 guideline patterns, then press "ENTER" button.
4. Carefully adjust the center of the background vertically and horizontally in the range of 8 - 8. Align it with the prepared line, and press the "ENTER" button.
5. The adjustment is completed.
