Function of Multifunction Switch

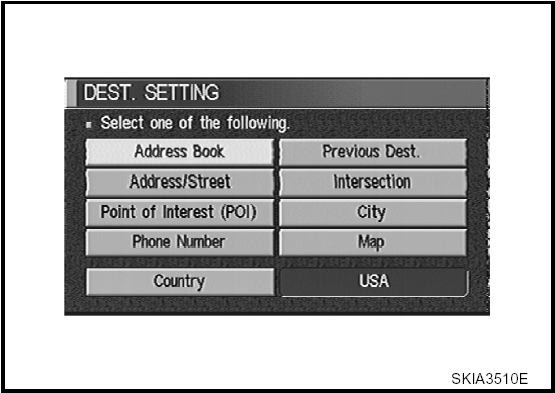

FUNCTION OF MULTIFUNCTION SWITCHDisplay with Pushed "DEST" Switch
- Easy Mode
- Expert Mode
Display with Pushed "ROUTE" Switch
- Easy Mode
- Expert Mode
Display with Pushed "SETTING" Switch

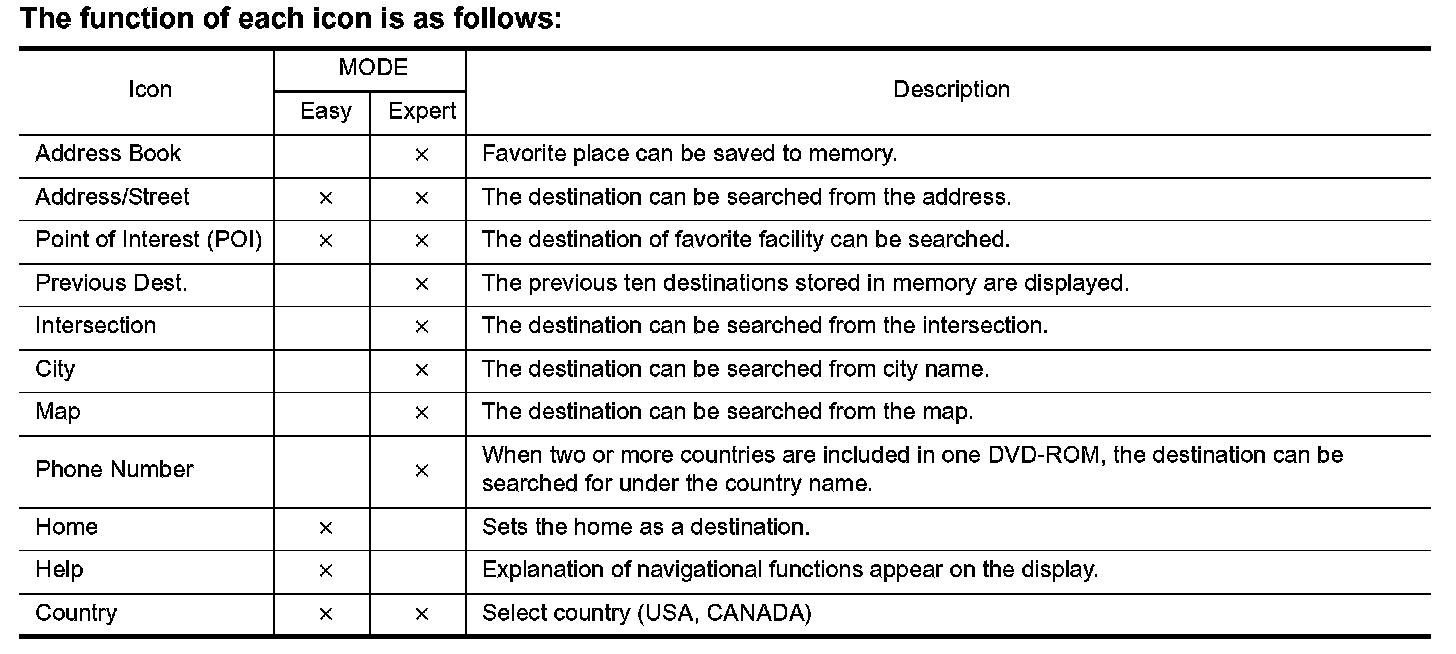

The function of each icon is as given
Navigation Setting

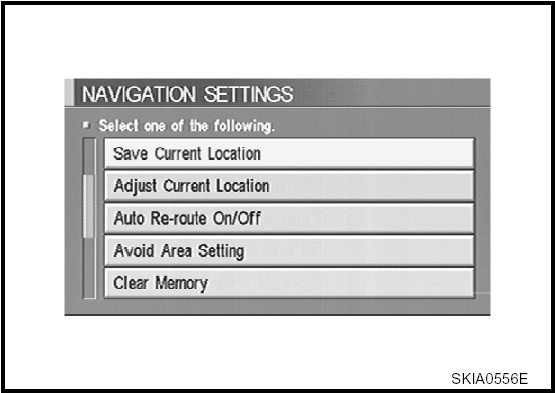

How To Perform Navigation Setting
1. Start the engine.
2. Push "SETTING" switch.
3. Select "NAVIGATION".
Application Items

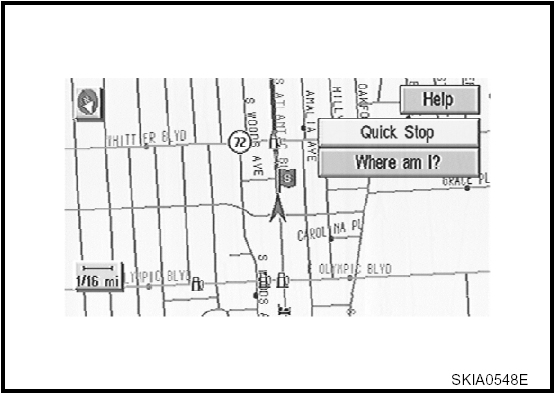

"VIEW" MODE
1. Select "BIRDVIEW(TM)" or "Plan View" icon.
- To open the map screen display with BIRDVIEW(TM), select "BIRDVIEW(TM)".
- To open the map screen display with Plan View, select "Plan View".
"GPS INFORMATION" MODE
- Latitude, longitude, altitude, astrometric state, and satellite location are displayed as GPS information.
NOTE: Altitude is displayed only in three-dimensional status.
"SAVE CURRENT LOCATION" MODE
- The current vehicle location can be registered in "Address Book".
NOTE: "Address Book" can store 50 items max.

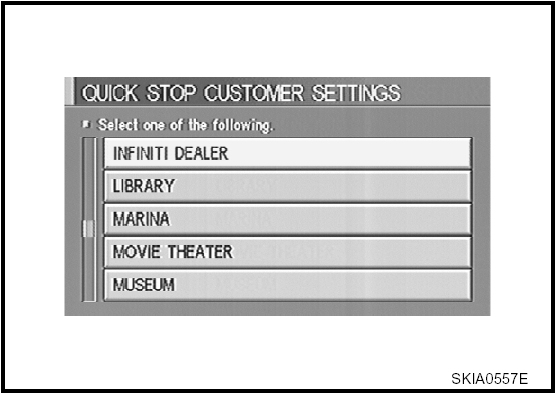

"QUICK STOP CUSTOMER SETTINGS" MODE
- Select a category for the "Quick Stop" menu.

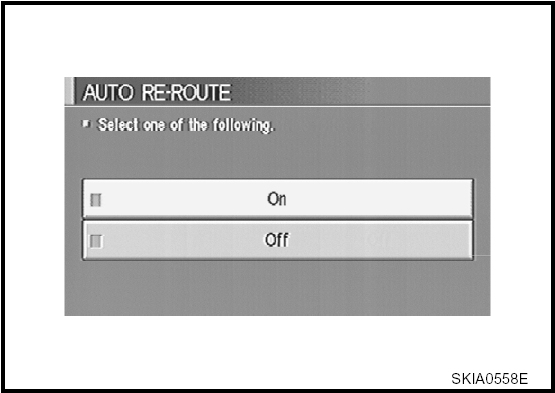

"AUTO RE-ROUTE" MODE
- To activate "AUTO RE-ROOT" mode, select "On".
- To disactivate "AUTO RE-ROOT" mode, select "Off".
"AVOID AREA SETTINGS" MODE
- Areas to avoid can be registered.
"TRACKING" MODE
- To delete the tracking marks on, select "Off".
- To leave the tracking marks on map, select "On".
NOTE: When a trail display is turned OFF, trail data is erased from the memory.
"EDIT ADDRESS BOOK" MODE
- Edit the items registered in Address Book.

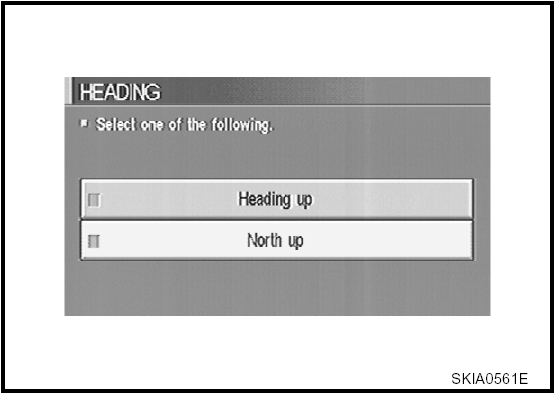

"HEADING" MODE
- To display North up, select "North up".
- To display the car heading up, select "Heading up".
"NEARBY DISPLAY ICONS" MODE
- Select an icon to display on the map screen.
"ADJUST CURRENT LOCATION" MODE
1. Select an icon"right" or "left" to calibrate the heading direction. (Arrow marks will rotate corresponding to the calibration key.)
2. Select "Set". Then the vehicle mark will be matched to the arrow mark.
"SET AVERAGE SPEED" MODE
- Set the average vehicle speed to calibrate the estimated journey time for the destination.
- Set three items; "Freeway", "Main Roads", and "Ordinary Roads".

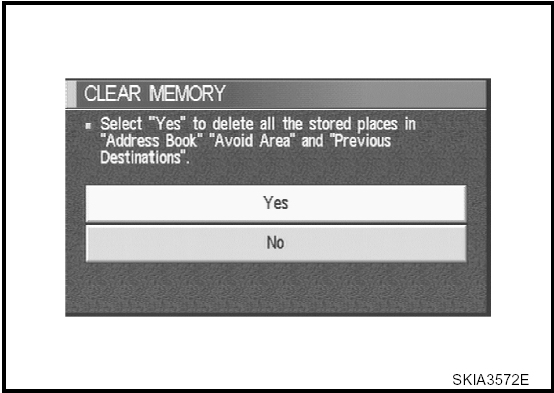

"CLEAR MEMORY" MODE
- To delete all the stored places in "Address Book", "Avoid Area" and "Previous Dest", select "Yes".
GUIDANCE VOLUME
Description
Following guidance volume setting can be changed.
Activation/Deactivation Setting
- The voice prompt can be turned on/off by pressing the "Guidance Volume" button.
Voice Volume Setting
- Volume of the voice can be controlled by bending the joystick to left/right.
