Removal and Installation of Audiopilot(TM) Microphone
Removal and Installation of AudioPilot(TM) MicrophoneREMOVAL

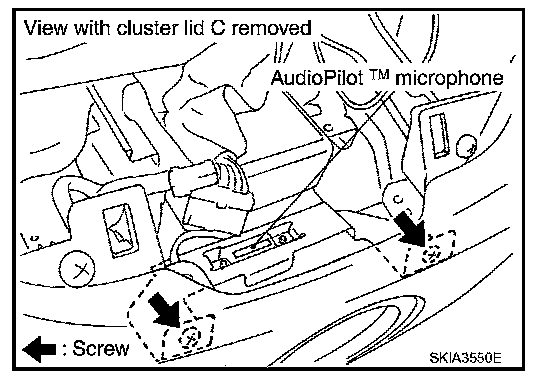

1. Remove cluster lid C. Refer to "CLUSTER LID C".
2. Remove clock.
3. Disconnect AudioPilot(TM) microphone connector.
4. Remove screws (2) and remove AudioPilot(TM) microphone.
INSTALLATION
Install in the reverse order of removal.
