Diagram Information and Instructions
>>
Cutting, Welding/Brazing Symbols
Cutting, Welding/Brazing Symbols

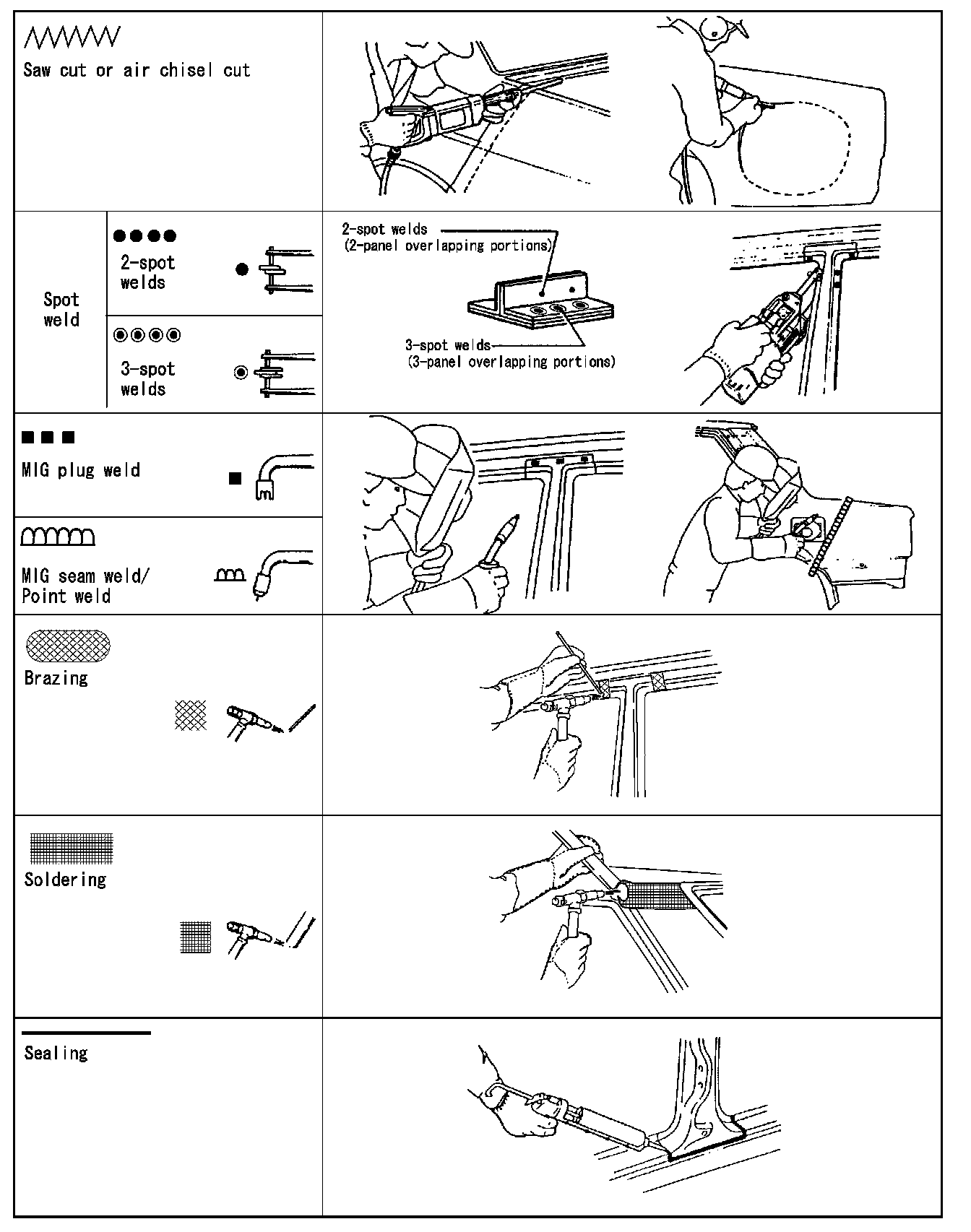

The symbols are used for cutting and welding/brazing operations are shown.
