Precautions For Brake System

Precautions for Brake System
Recommended fluid is brake fluid "DOT 3".

Do not reuse drained brake fluid.

Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.

To clean or wash all parts of master cylinder, disc brake caliper and wheel cylinder, use clean brake fluid.

Never use mineral oils such as gasoline or kerosene. They will ruin rubber parts of the hydraulic system.

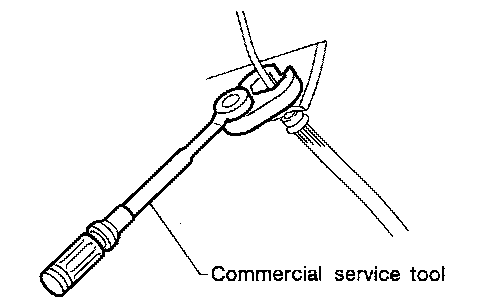

Use flare nut wrench when removing and installing brake tube.

Always torque brake lines when installing.

Before working, turn ignition switch OFF and disconnect connectors for VDC actuator or battery terminals.

Burnish brake contact surfaces after refinishing or replacing drums or rotors, after replacing pads or linings, or if a soft pedal occurs at very low mileage.

WARNING: Clean brake pads and shoes with a waste cloth, then wipe with a dust collector.
