Suspension Control Diagrams

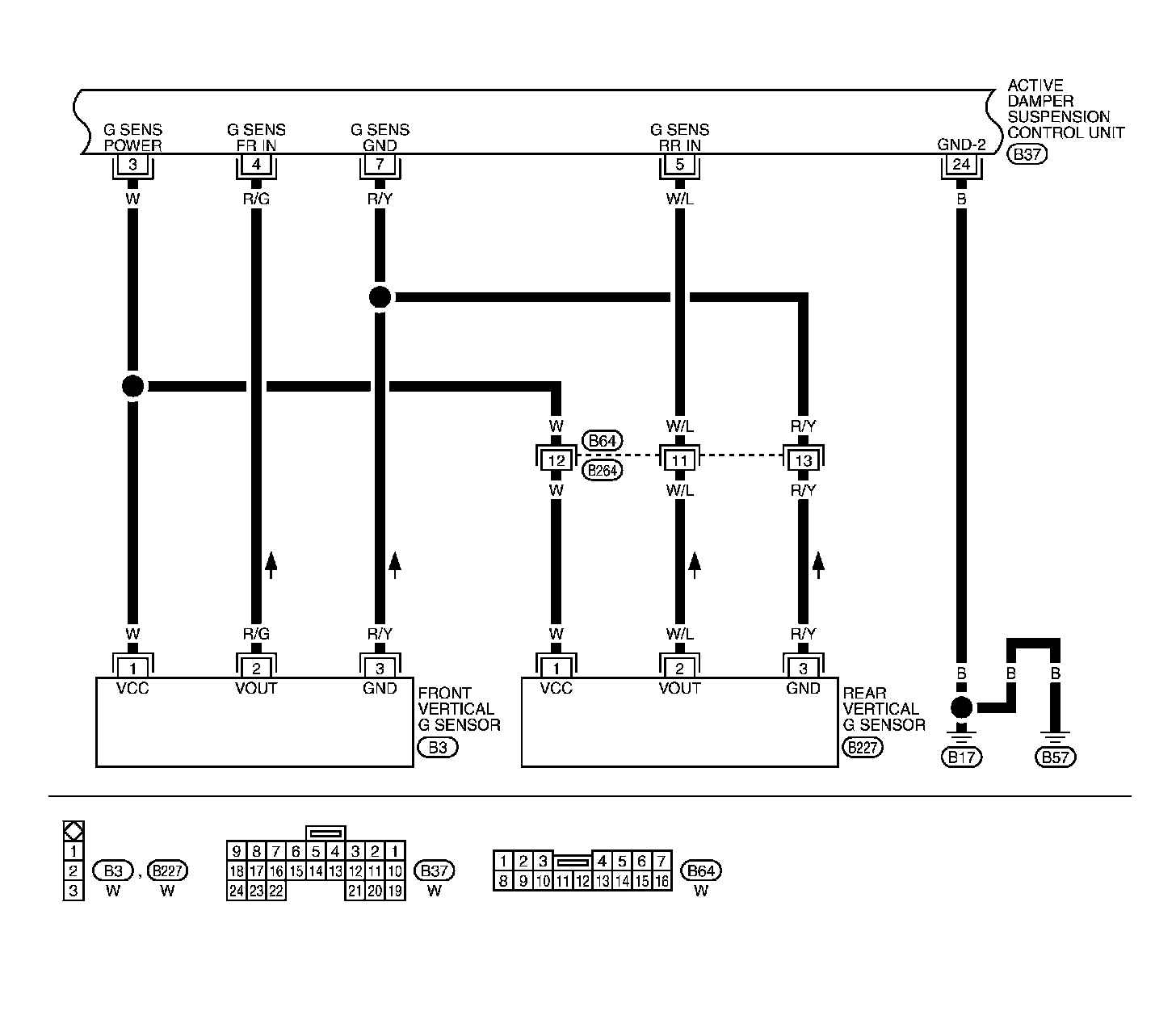

SCS-ACTIVE-01:

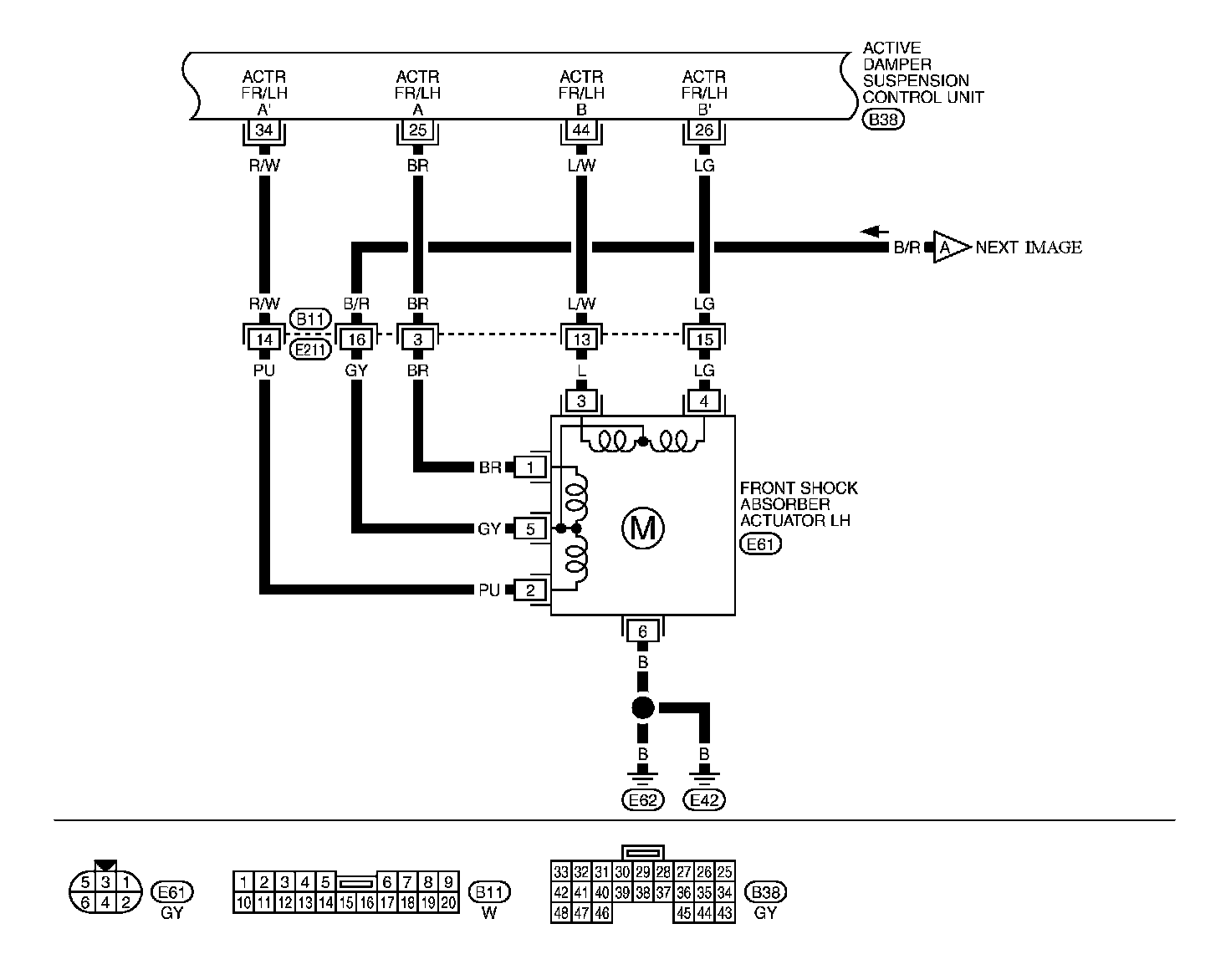

SCS-ACTIVE-02:

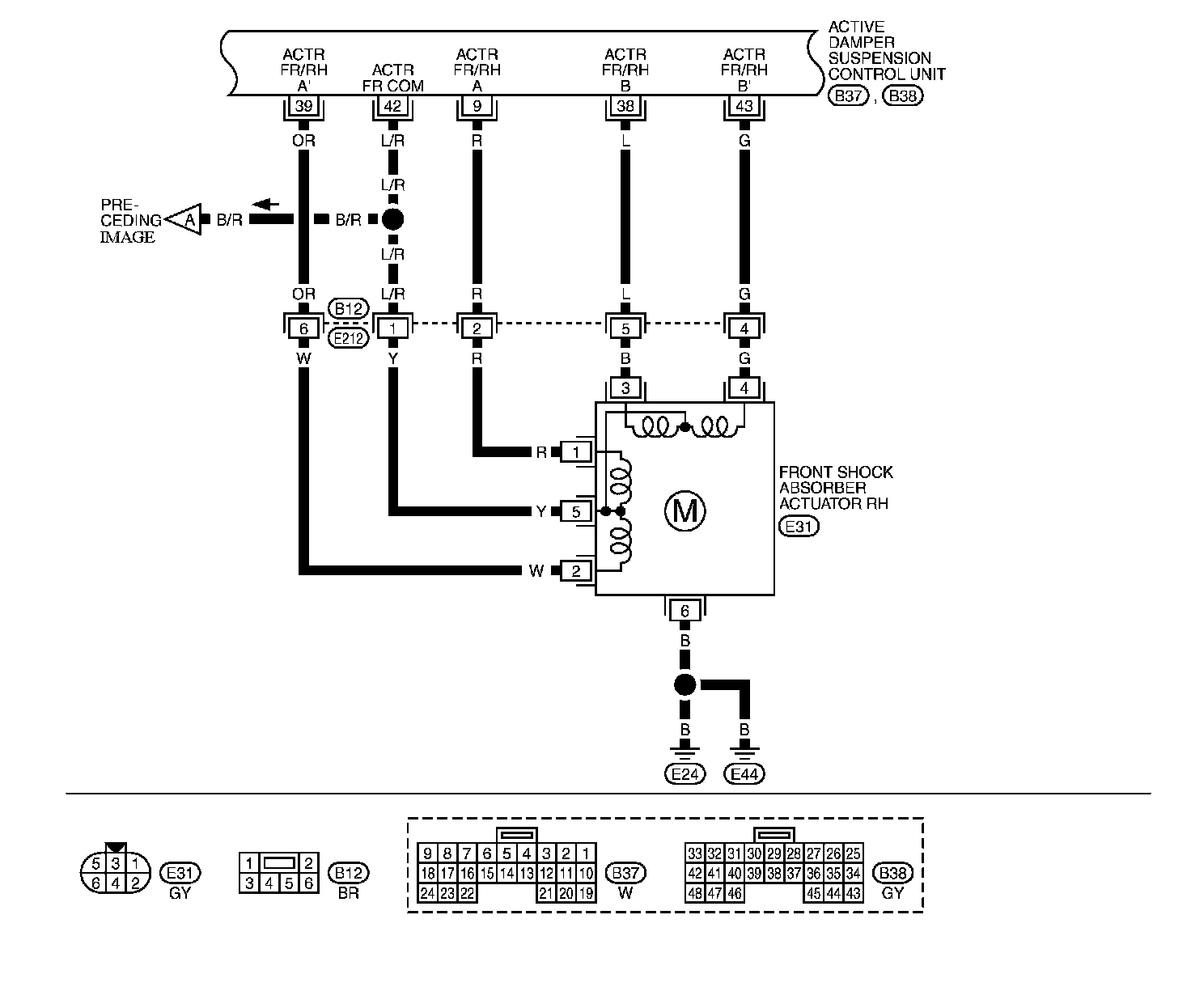

SCS-ACTIVE-03:

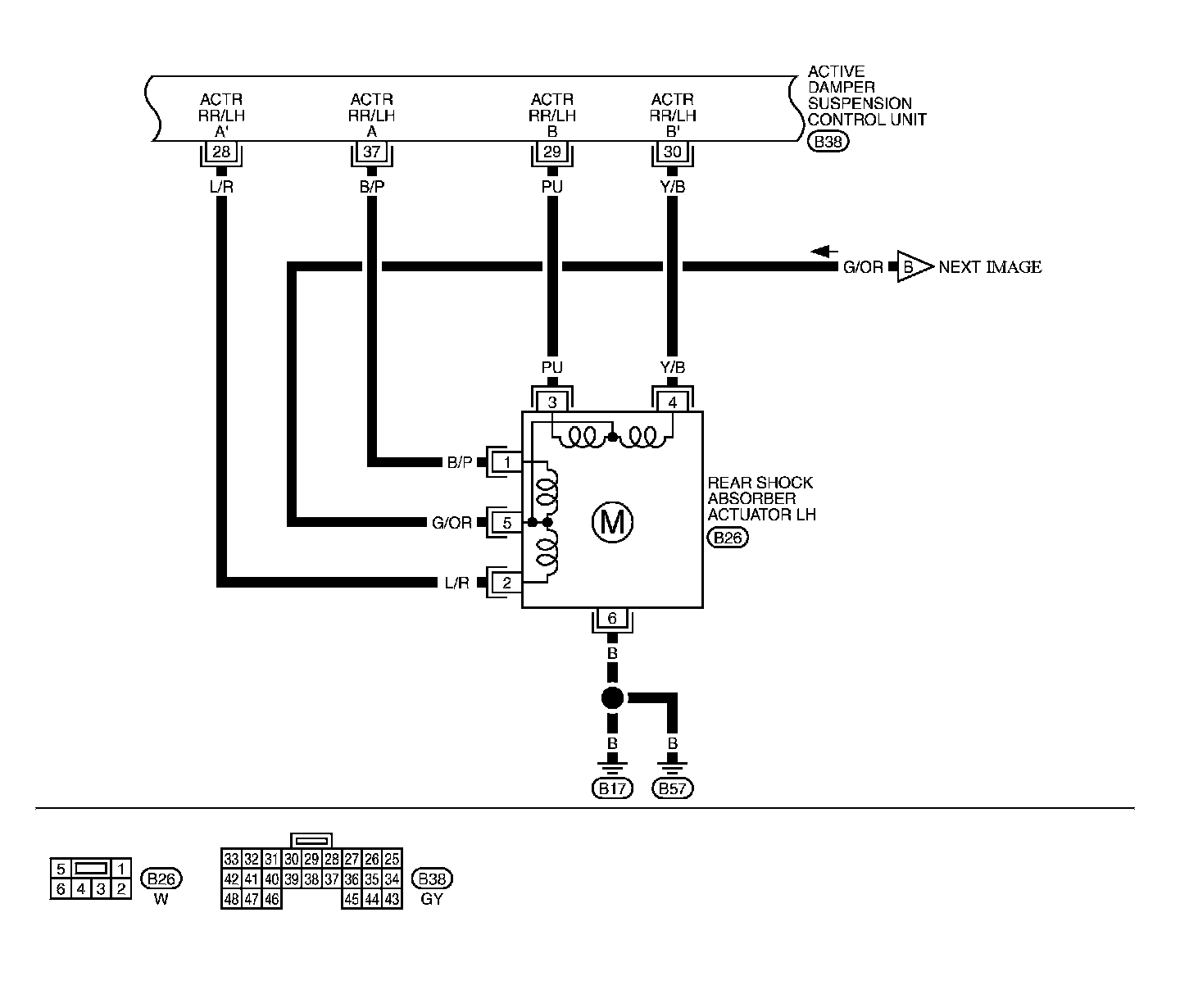

SCS-ACTIVE-04:

SCS-ACTIVE-05:

SCS-ACTIVE-06:

SCS-ACTIVE-07:

SCS-ACTIVE-08:

SCS-ACTIVE-08:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
