Cabin Temperature Sensor / Switch: Service and Repair
IN-VEHICLE SENSORRemoval and Installation
REMOVAL

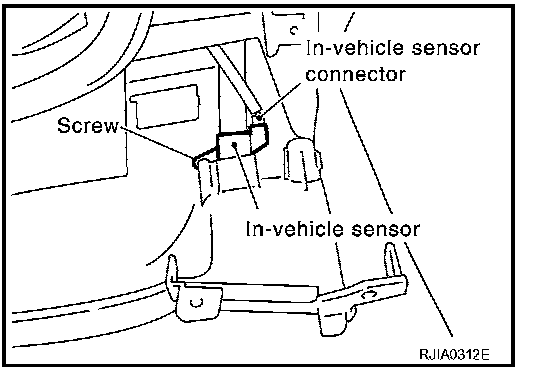

1. Remove instrument lower driver panel.
2. Disconnect in-vehicle sensor connector and aspirator duct.
3. Remove in-vehicle sensor.
INSTALLATION
Installation is basically the reverse order of removal.
