Cabin Temperature Sensor / Switch: Testing and Inspection
COMPONENT INSPECTION
In-Vehicle Sensor

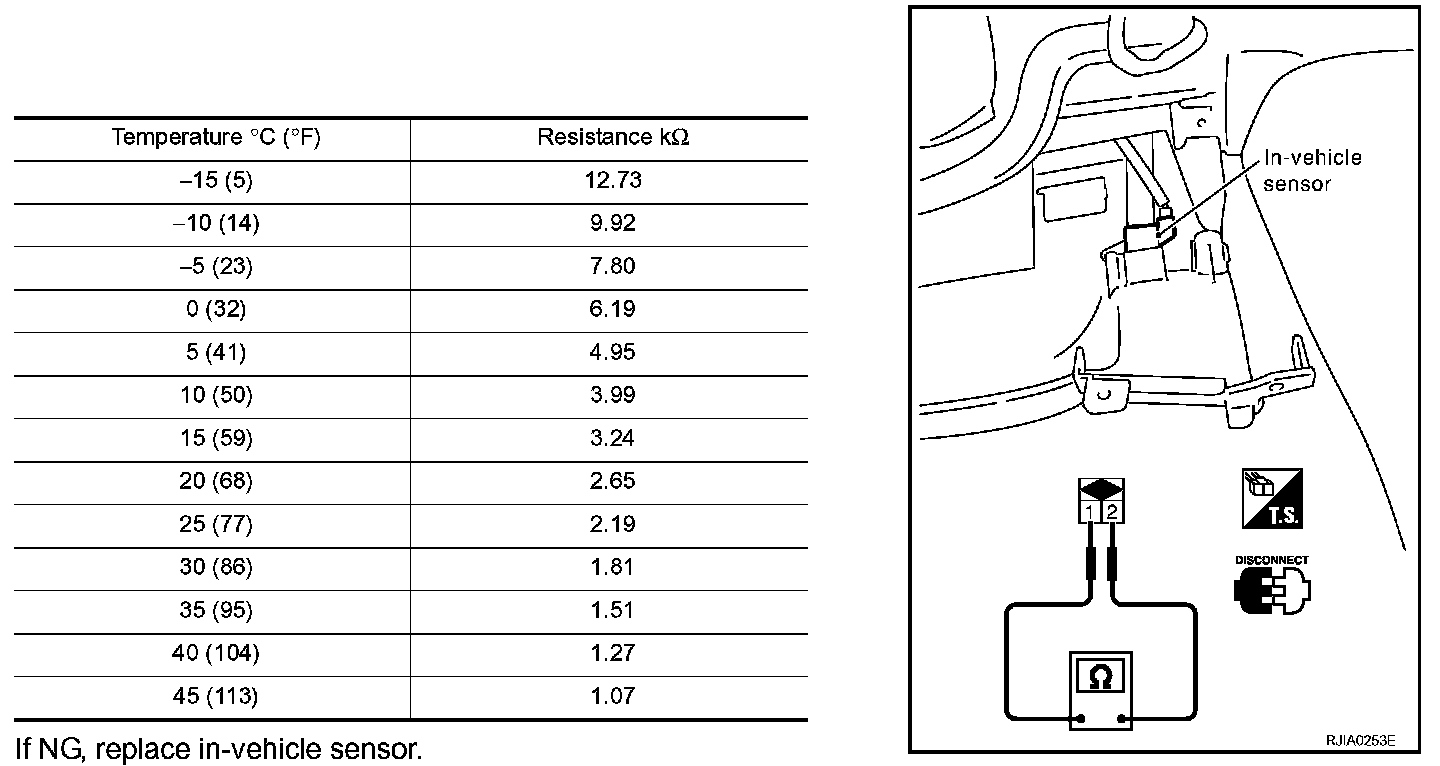

After disconnecting in-vehicle sensor harness connector, measure resistance between terminals 1 and 2 at sensor harness side, using the table.
In-Vehicle Sensor
After disconnecting in-vehicle sensor harness connector, measure resistance between terminals 1 and 2 at sensor harness side, using the table.
