Compressor Clutch Relay: Testing and Inspection

COMPONENT INSPECTION

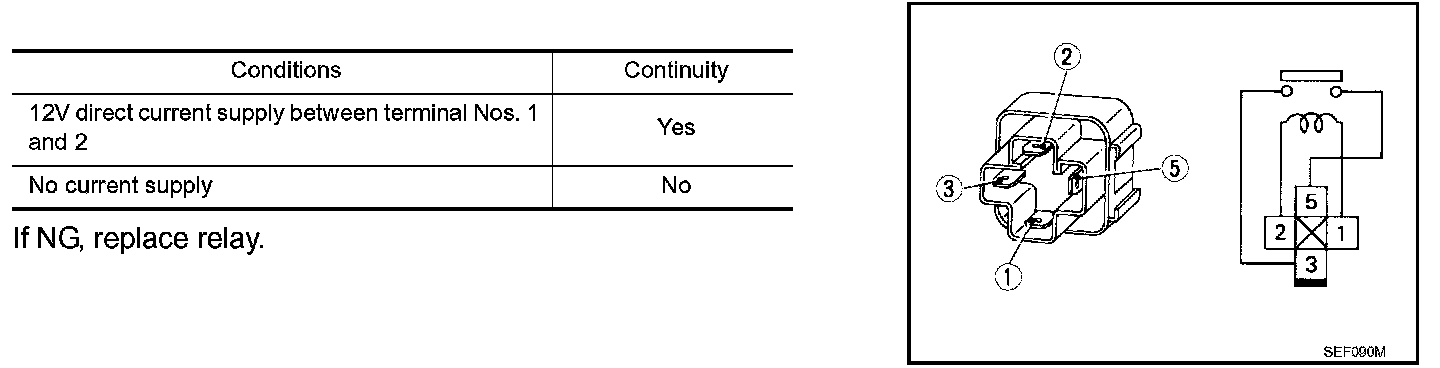

A/C Relay
Check continuity between terminal Nos. 3 and 5.
