Solar Sensor: Testing and Inspection

COMPONENT INSPECTION

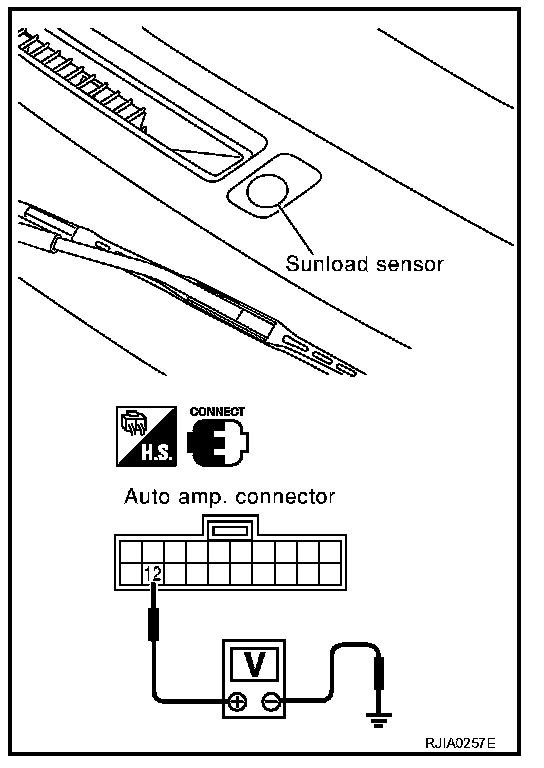

Sunload Sensor
Measure voltage between auto amp. terminal 12 and ground. If NG, replace auto amp.




- When checking sunload sensor, select a place where sun shines directly on it.
