Disassembly and Assembly

Disassembly and Assembly

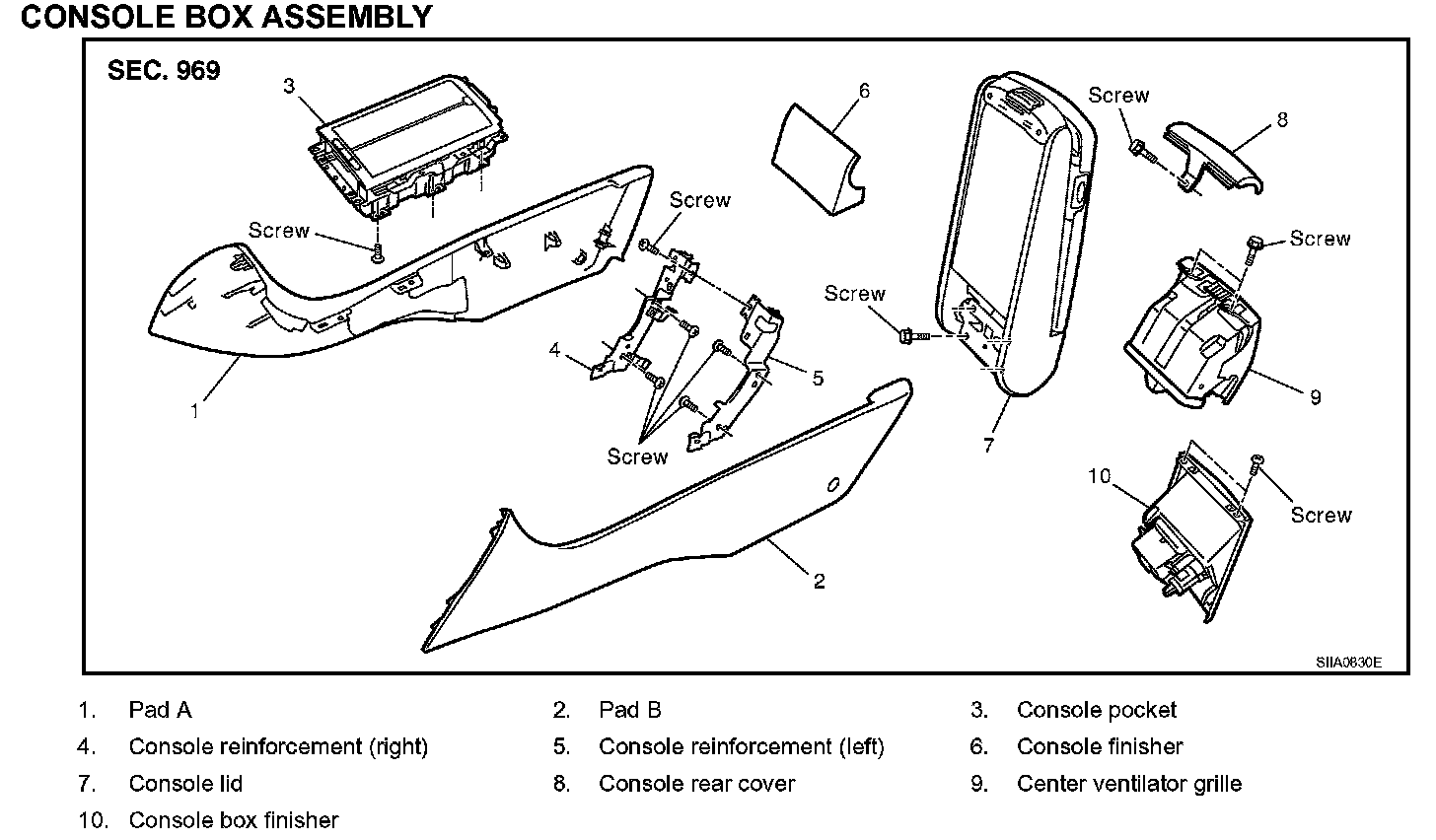

CONSOLE BOX ASSEMBLY




1. Remove console finisher.
2. Remove console rear cover.
3. Remove console lid.
4. Remove center ventilator grille.
5. Remove console box finisher.
6. Remove console box.
7. Remove bracket.
