Removal and Installation

Removal and Installation for Combination Meter

REMOVAL
1. Remove the cluster lid A. Refer to "INSTRUMENT PANEL ASSEMBLY".

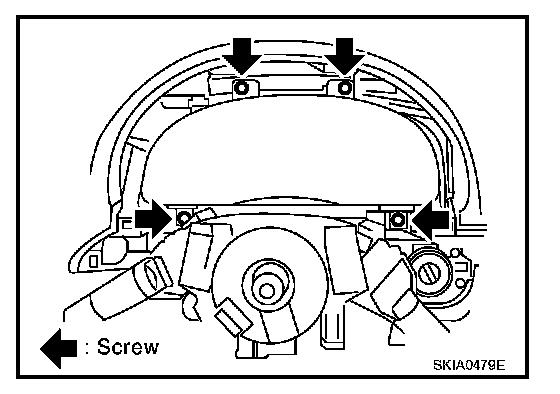

2. Remove the screws (4) with power tool, and disconnect connectors.




3. Rotating the combination meter so that the left-side is in front, turn it until the meter face comes to the top.

CAUTION: To prevent it from being damaged by interference with the meter bracket, protect the meter with cloth.




4. While pulling combination meter forward, pull it out to the right (combination meter back-side shall be in front).

INSTALLATION
Install in the reverse order of removal.
