Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2003
>>
Q45 V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Locations
>>
Connector Locations
Connector Locations

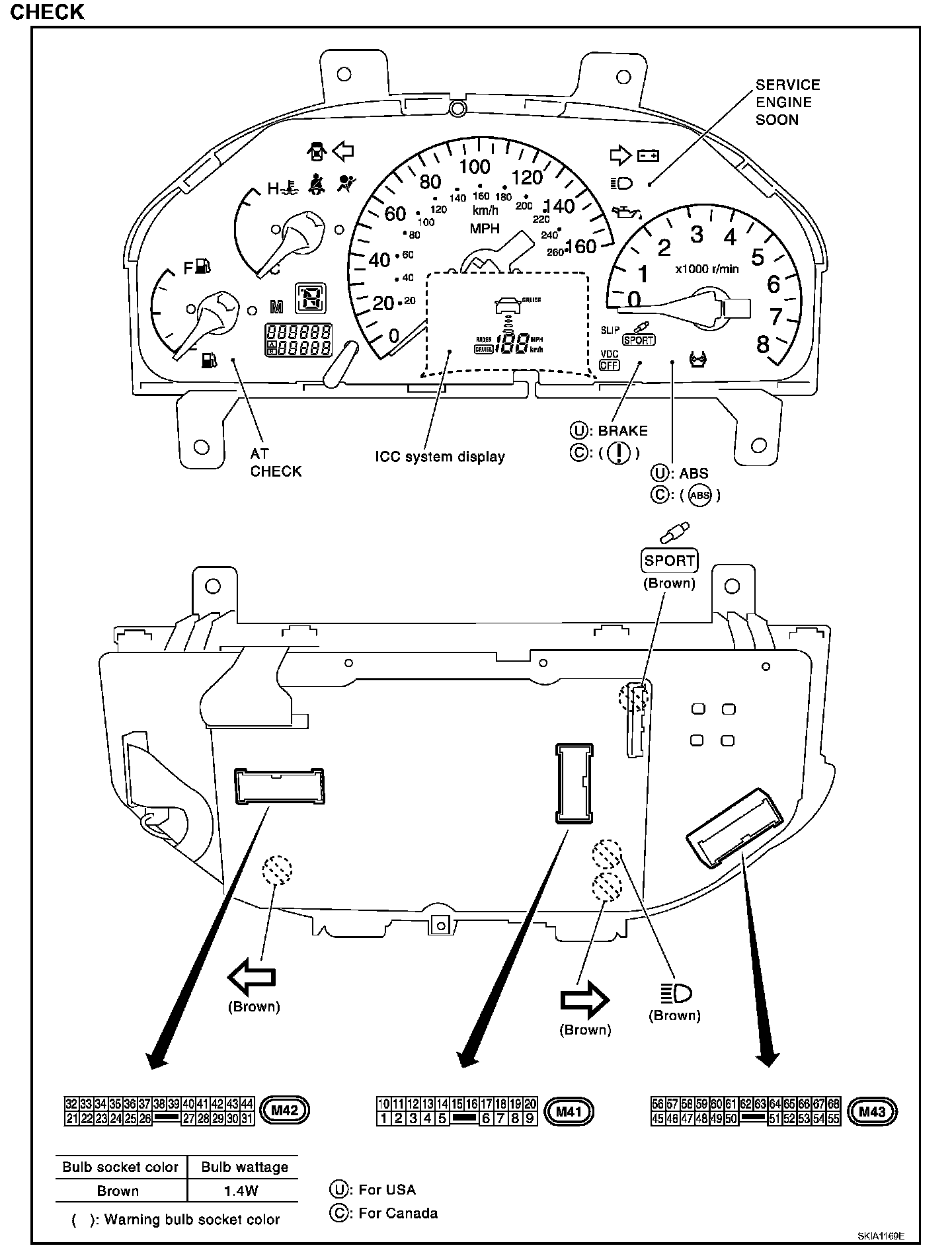

Combination Meter/Without ICC System:
Combination Meter/With ICC System:
