Reading and Clearing Diagnostic Trouble Codes

CONSULT-II Function
- CONSULT-II executes the following functions by combining data reception and command transmission via the communication line from BCM. IVMS communication inspection, work support (only function setting of seats and steering wheel), self-diagnosis, data monitor, and active test display.

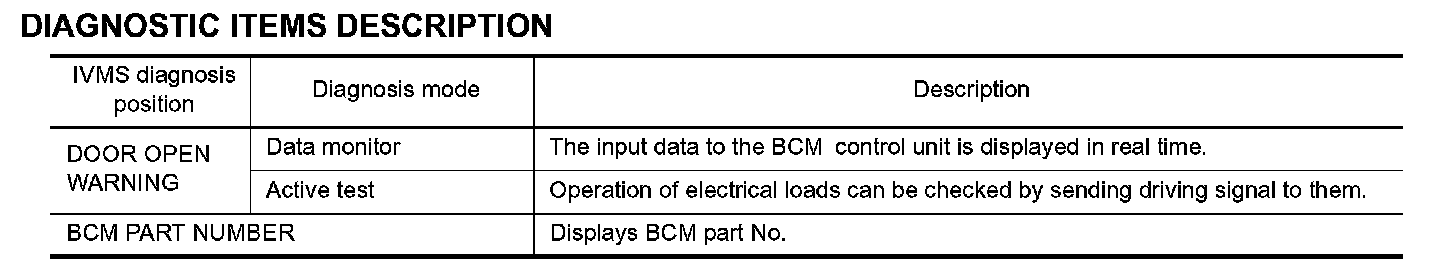

DIAGNOSTIC ITEMS DESCRIPTION

CONSULT-II BASIC OPERATION PROCEDURE




1. With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, and turn the ignition switch ON.




2. Touch "START (NISSAN BASED VHCL)".

3. Touch "IVMS".




If "IVMS" is not indicated, go to GI-38, "CONSULT-II Data Link Connector (DLC) Circuit". Data Link Connector Schematic




4. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
5. Touch "OK". If the selection is wrong, touch "CANCEL".

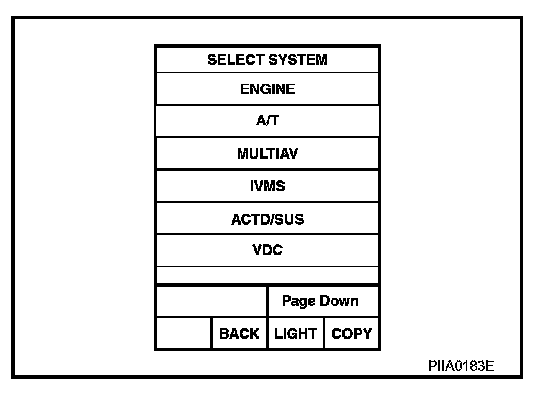

6. Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.
