Description of On-Board Diagnostics

On Board Diagnosis

ON BOARD DIAGNOSTIC RESULTS INDICATOR LAMP
- Map lamps and step lamps (all seats) act as the indicators for the on board diagnosis.




DIAGNOSIS ITEM

SWITCH MONITOR
- Perform the diagnosis on the switch system to each control unit.

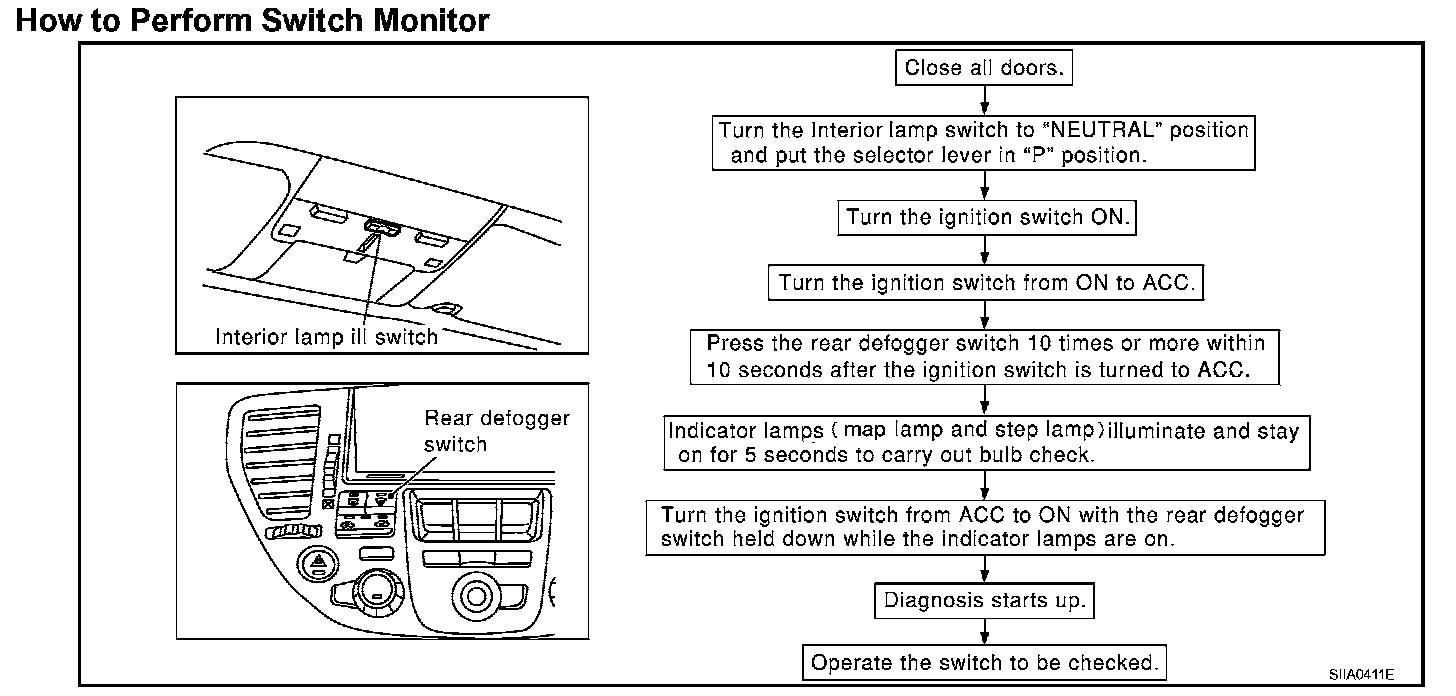

How to Perform Switch Monitor

Description




- In this mode, when BCM detects the input signal from a switch in IVMS as shown, the detection is indicated by the map lamp and front step lamps with buzzer.

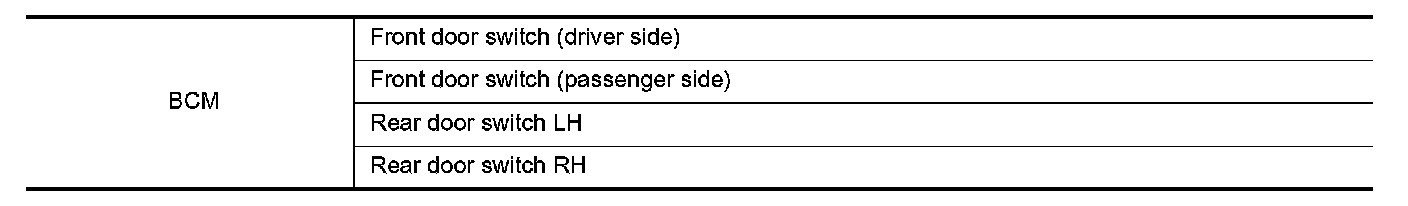

Switch Monitor Item




- The status of the switch (except the ignition switch, interior lamp switch, and map lamp switch) as input to each control unit can be monitored.

Cancel of Switch Monitor
- Turn ignition switch OFF.
- Drive the vehicle at more than 7 km/h (4 MPH).
