Center Mounted Brake Lamp: Service and Repair
HIGH-MOUNTED STOP LAMP
1.

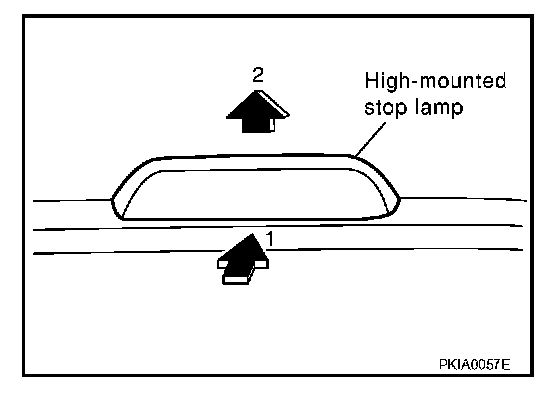

Pull up the high-mounted stop lamp while pressing it toward rear of the vehicle and remove from the vehicle.
2.
Disconnect the high-mounted stop lamp connector.
