Auto Light System
Auto Light System

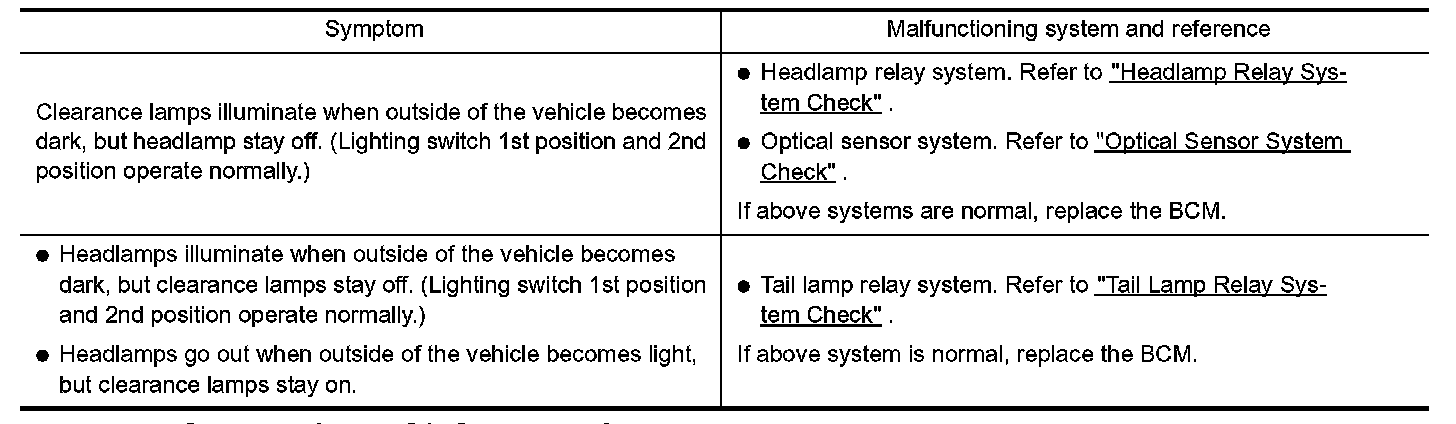

Symptom Chart (Auto Light System) Part 1:
Symptom Chart (Auto Light System) Part 2:
