Auxiliary Power Outlet: Service and Repair

Removal and Installation

REMOVAL




1. Remove console box assembly, refer to "WORK STEPS" in Instrument Panel.
2. Disconnect power socket connector.

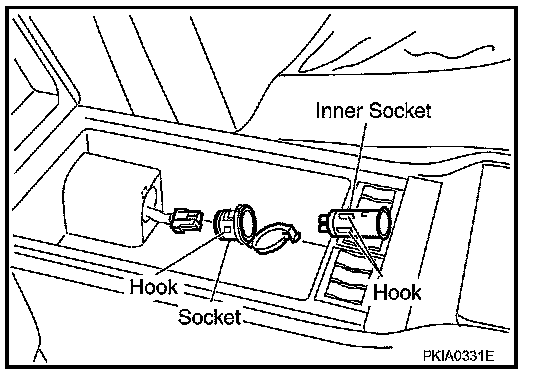

3. Remove inner socket and socket from the console finisher while pressing hook on inner socket.
4. Remove socket from inner socket while pressing hook.

INSTALLATION
Installation is in the reverse order of removal.
