Home >> Infiniti >> 2003 >> Q45 V8-4.5L (VK45DE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Instrument Panel Control Module >> Locations

Instrument Panel Control Module: Locations

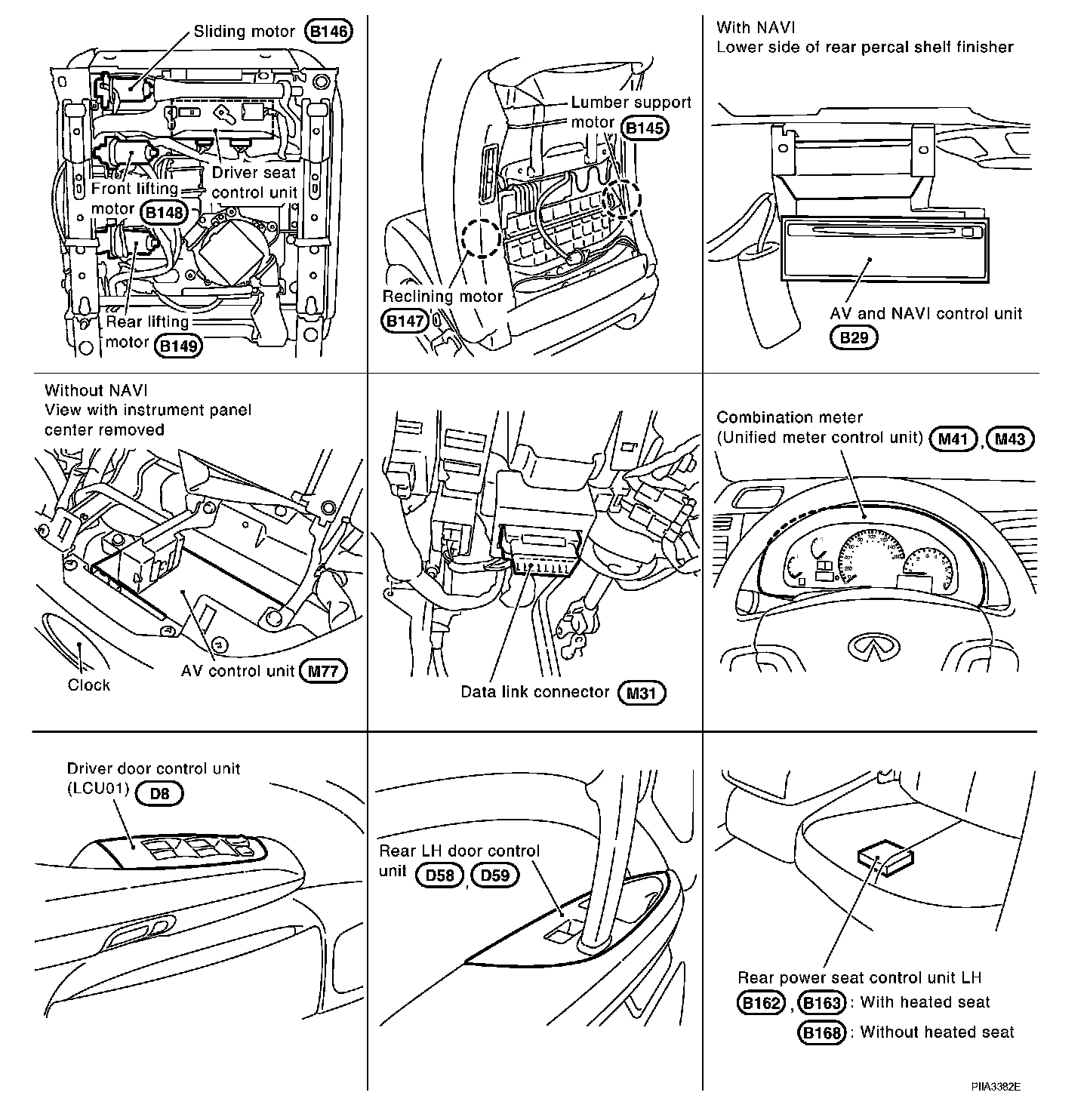

Component Parts And Harness Connector Location Part 2:
