Removal and Installation

Removal and Installation




Observe the following to ensure proper servicing.

CAUTION:
- When removing, remove negative terminal first. But for installation, install positive terminal first.
- Tighten parts to the specified torque shown below.

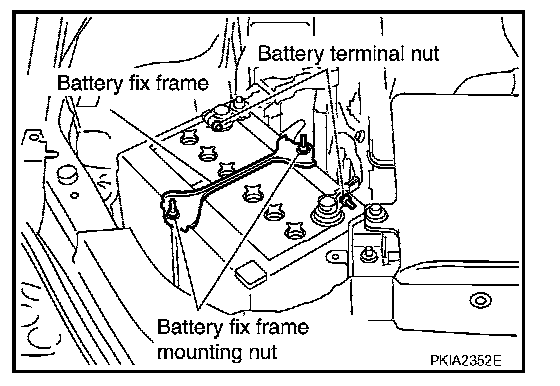

Battery fix frame mounting nut:
Torque: 3.5 - 5.3 Nm (0.36 - 0.54 kg-m, 31 - 46 in-lb)

Battery terminal nut:
Torque: 3.0 - 5.0 Nm (0.31 - 0.51 kg-m, 27 - 44 in-lb)
