Component Tests and General Diagnostics

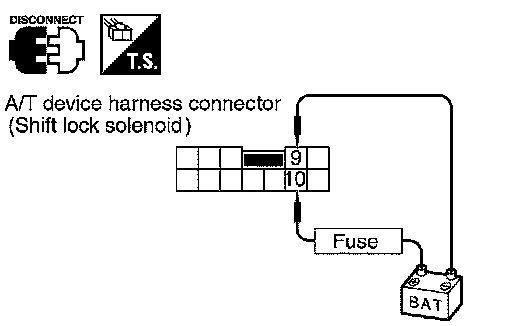

SHIFT LOCK SOLENOID

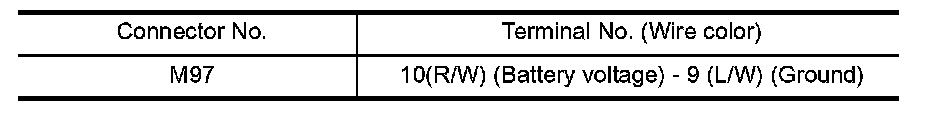

^ Check operation by applying battery voltage to the A/T device harness connector.





CAUTION: Be sure to apply the voltage of the correct polarity to the respective terminals. Otherwise, the part may be damaged.

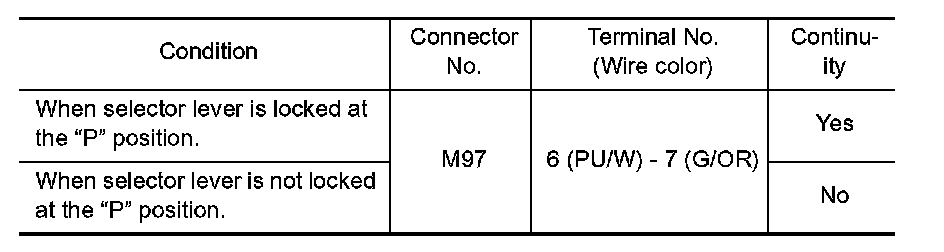

DETENTION SWITCH








For Key: Check continuity between terminals of the A/T device harness connector.

KEY LOCK SOLENOID
Key lock








^ Check operation by applying battery voltage to key switch and key lock solenoid harness connector.

CAUTION: Be careful not to cause burnout of the harness.

Key unlock








^ Check operation by applying battery voltage to key switch and key lock solenoid harness connector.

CAUTION: Be careful not to cause burnout of the harness.

KEY SWITCH








^ Check continuity between terminals of the key switch and key lock solenoid harness connector.

STOP LAMP SWITCH








^ Check continuity between terminals of the stop lamp switch harness connector.
Check stop lamp switch after adjusting brake pedal. Refer to "BRAKE PEDAL".
