Without Scan Tool

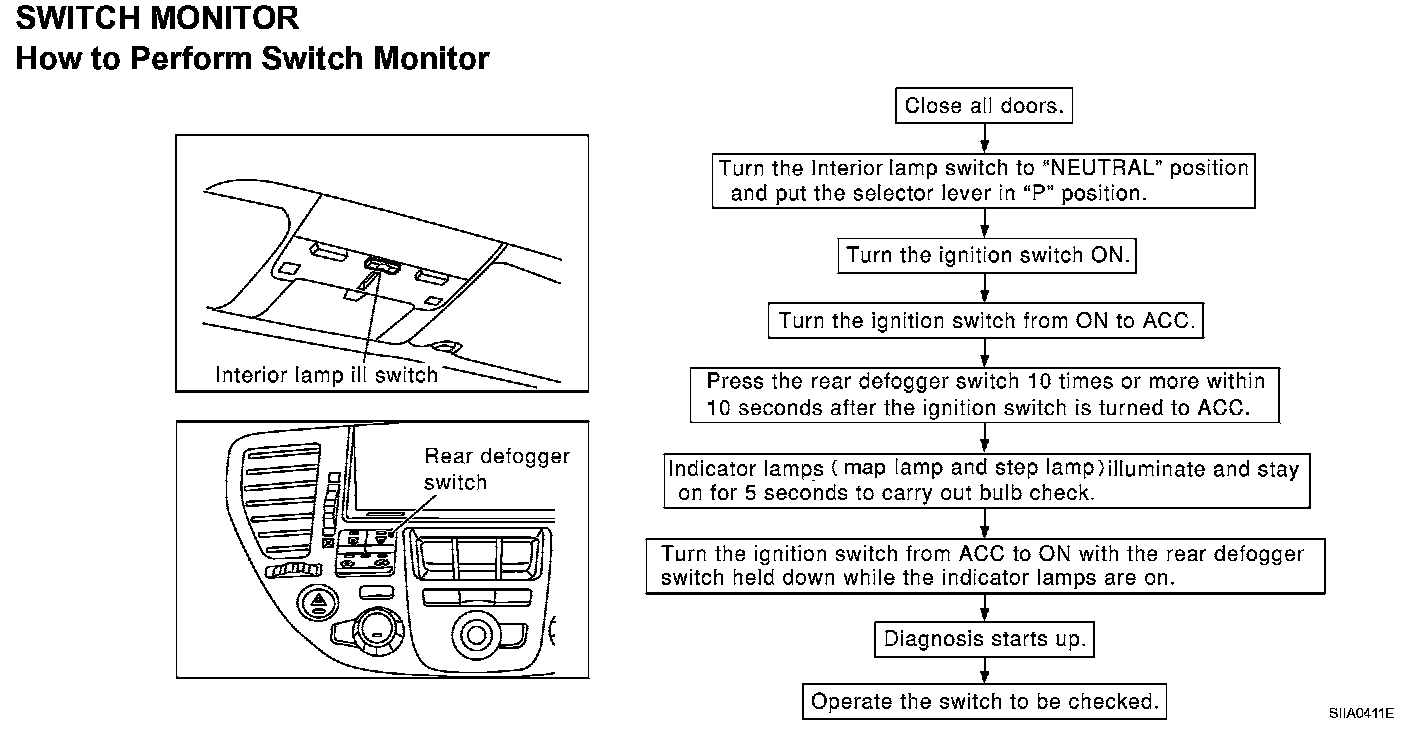

SWITCH MONITOR




How to Perform Switch Monitor




Diagnosis Result Display
- Detects the status change (switch ON/OFF operation) of the switch to be checked, and turns on/off the indicator lamps (the map lamp and step lamp). Also sounds the buzzer for 0.5 seconds.
- If a malfunction is detected, no indicator lamp and buzzer react.

Cancel of Switch Monitor
The ignition switch is turned OFF.
