Wiper Switch: Service and Repair

Removal and Installation for Front Wiper and Washer Switch

REMOVAL
1. Remove steering column cover. Refer to "WORK STEPS" in Instrument Panel.
2. Remove front wiper and washer switch connector.

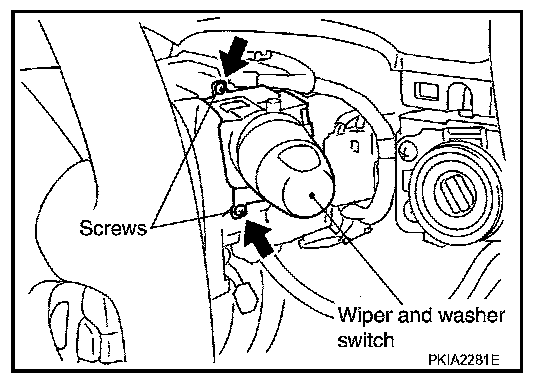

3. Remove two screws then remove wiper washer switch from the base.

INSTALLATION
Installation is in the reverse order of removal.
