GPS Antenna
GPS Antenna
Removal and Installation of GPS Antenna
1.

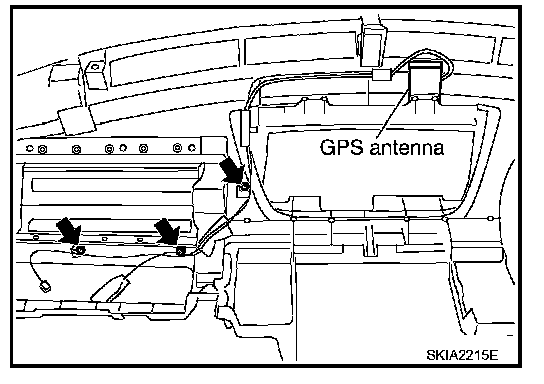

Remove instrument panel and antenna feeder installation screws on back side.
2.

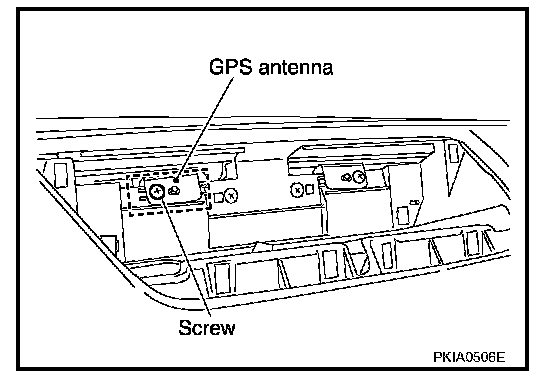

Remove screw and remove GPS antenna.
