Audio Unit

Removal and Installation for Audio Unit

1. Perform damper lock operation.
2. Remove cluster lid C.

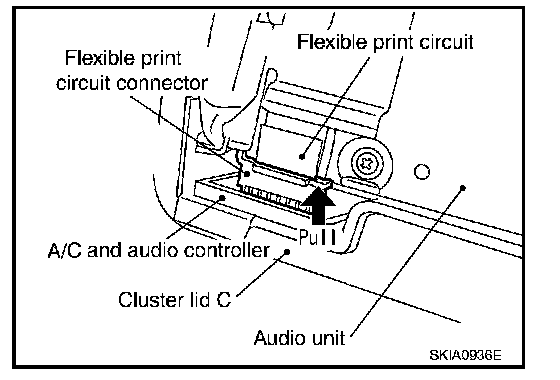

3. Unlock FPC (Flexible Print Circuit) connector lock on A/C and audio controller side.
4. Pull off flexible printed circuit from connector.

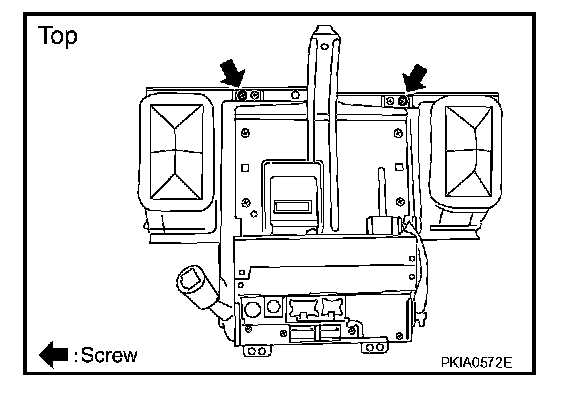

5. Remove screws (top: 2).

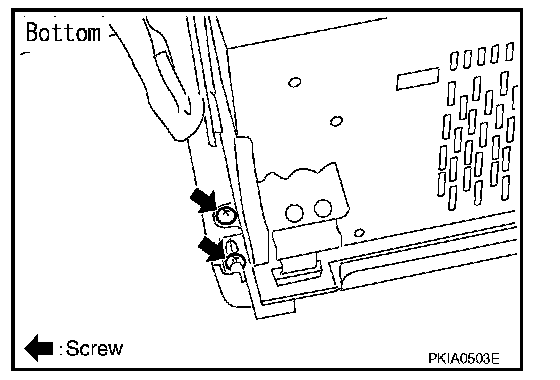

6. Remove screws (bottom: 4). Remove audio unit and display unit assembly (with navigation system) from cluster lid C.

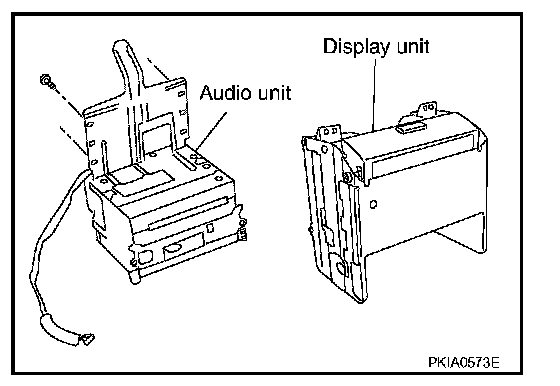

7. Separate audio unit from display unit assembly (with navigation system).

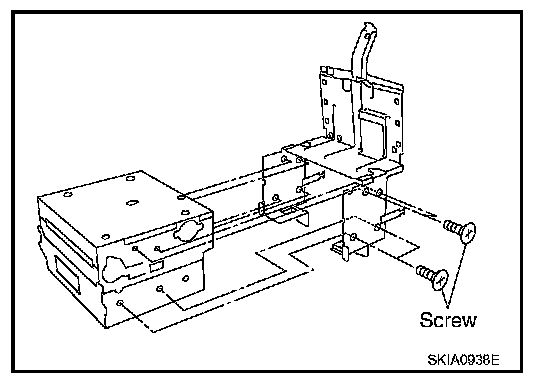

8. Remove 8 screws, and then bracket.

CAUTION:
- When carrying audio unit body, do not touch internal mechanism access from cassette tape slot.
- Be careful not to allow foreign material to enter from cassette tape slot.
- Removal and Installation of A/C and Audio Controller.
