Grille: Service and Repair

FRONT GRILLE

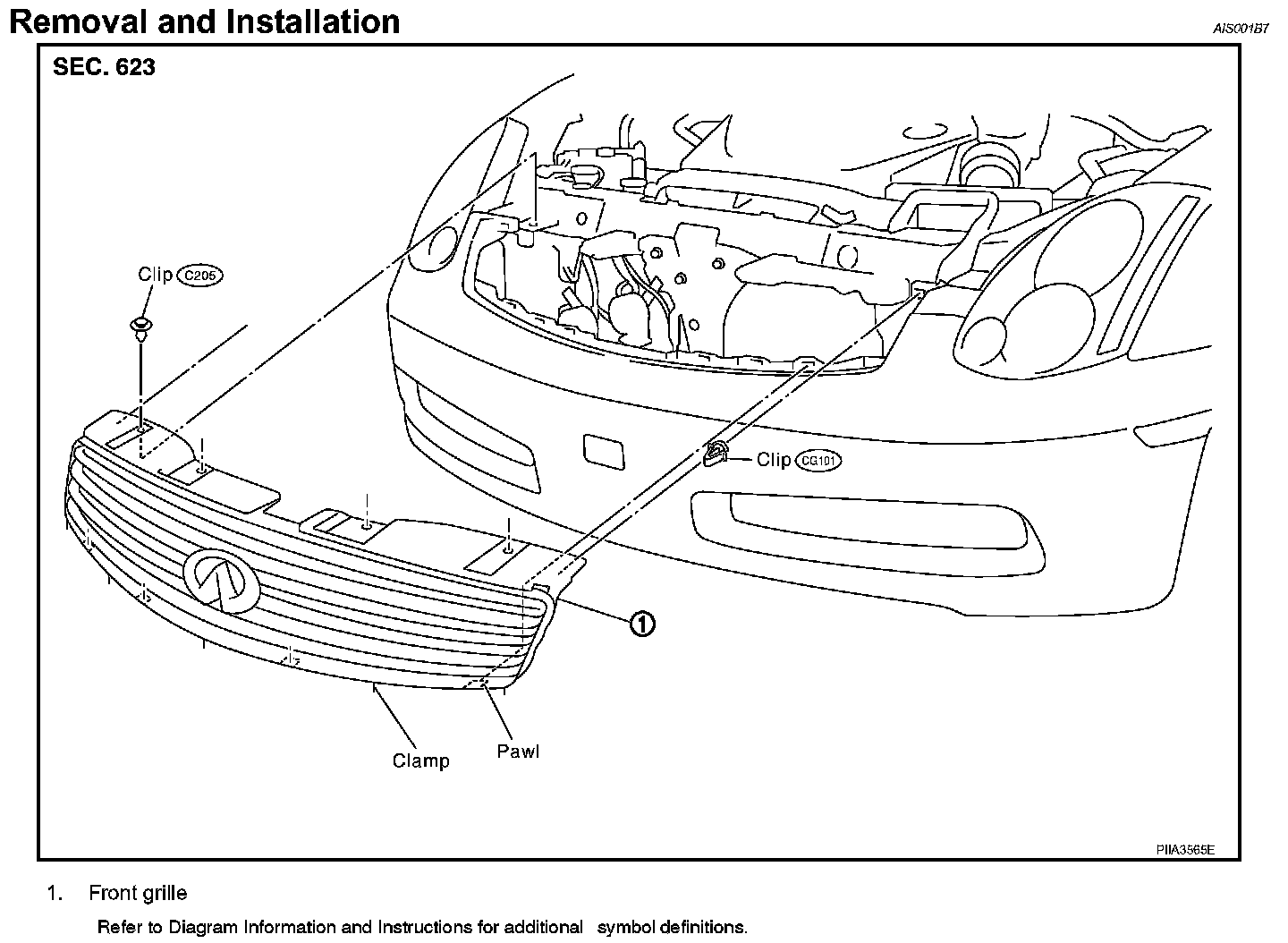

Exploded View EI-19:

Removal and Installation

REMOVAL
1. Apply protection tape around outer circumference of front grille (bumper fascia side).
2. Remove clips on upper side of grille.
3. Pull down tips of four turn fasteners from rear side of grille.
4. Disconnect turn fasteners then pull out grille.

INSTALLATION
Install in the reverse order of removal.
