Sunroof / Moonroof: Adjustments

Fitting Adjustment:

GAP ADJUSTMENT AND HEIGHT DIFFERENCE ADJUSTMENT

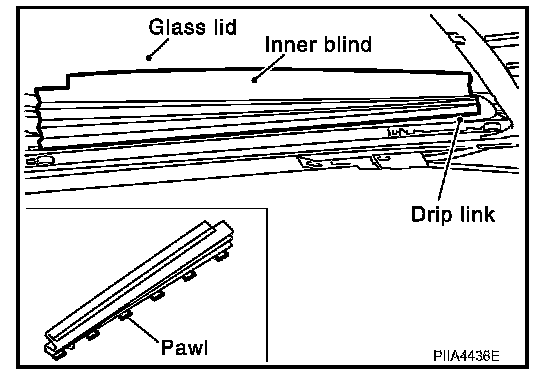

1. Remove the inner blind.

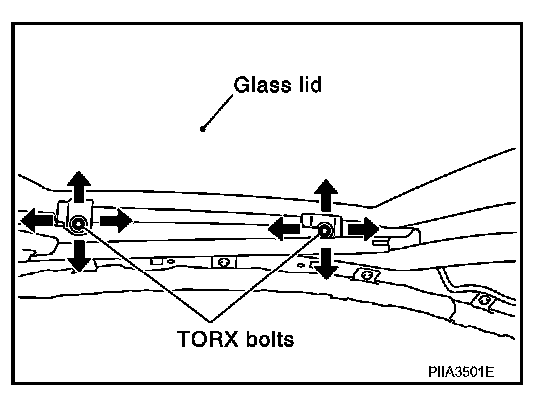

2. Loosen glass lid TORX bolts (T25) then tilt glass lid down.

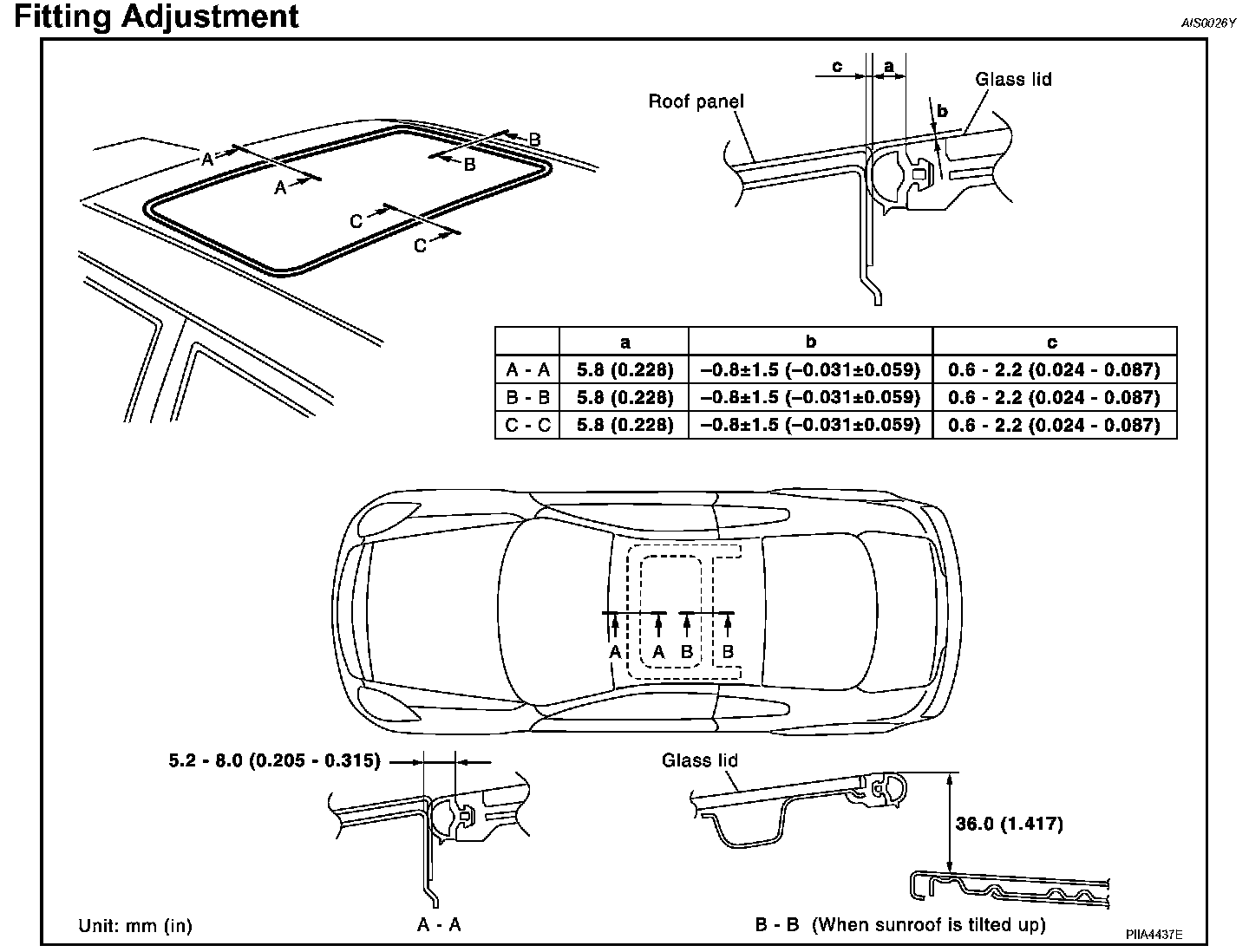

3. Adjust glass lid from outside off vehicle so it resembles "A - A" "B - B" as shown in the figure.
4. Tilt glass lid up and down until it is adjusted to "C - C" as shown in the figure.
5. To prevent glass lid from moving after adjustment, first tighten the TORX bolts (125) of glass front left, and then tighten the TORX bolts (125) of glass rear right.
6. Tighten remaining TORX bolts (T25), being careful to prevent glass from moving.
7. Tilt glass lid up and down several times to check that it moves smoothly.
