Seats: Locations

Rear Seat:

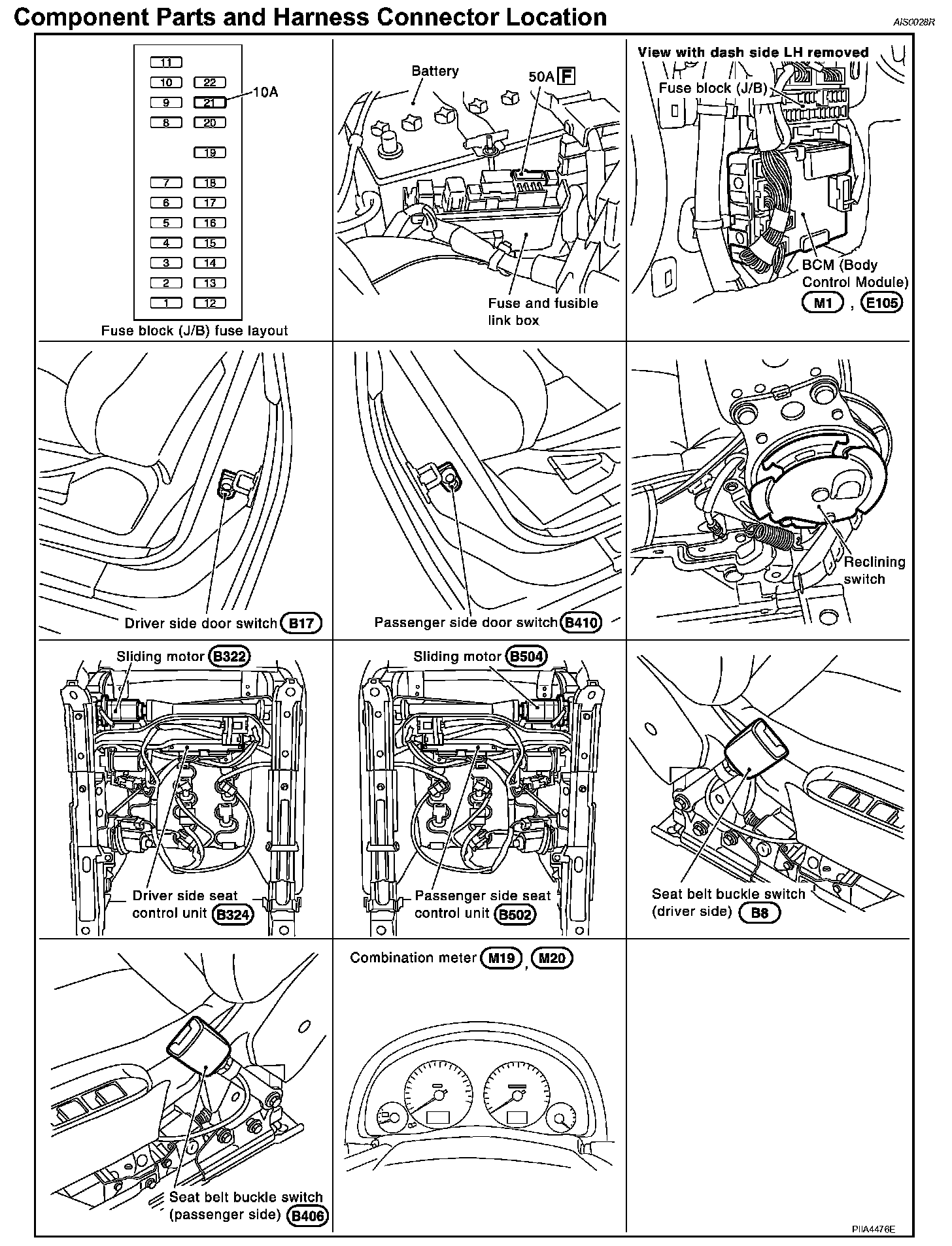

Component Parts And Harness Connector Location:

Front Seat:

Front Seat:
