Brake System

Precautions for Brake System
^ Recommended fluid is brake fluid "DOT 3".
^ Never reuse drained brake fluid.
^ Be careful not to splash brake fluid on painted areas such as body. If brake fluid is splashed, wipe it off and flush area with water immediately.
^ Never use mineral oils such as gasoline or kerosene to clean. They will ruin rubber parts and cause improper operation.

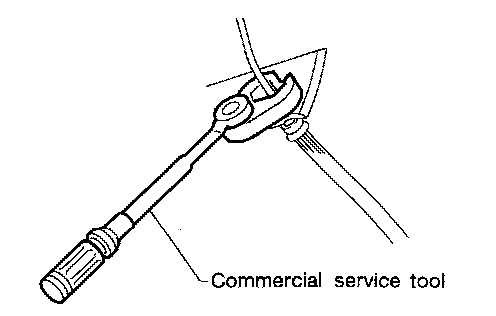

^ Using a flare nut torque wrench, securely tighten brake tube flare nuts.
^ Brake system is an important safety part. If a brake fluid leak is detected, always disassemble the affected part. If a malfunction is detected, replace part with a new one.
^ Before working, turn ignition switch OFF and disconnect electrical connectors of VDC actuator and control module or battery terminals.
^ When installing brake piping, be sure to check torque.
