Pinout Values and Diagnostic Parameters

Control Unit Input/Output Signal Standard

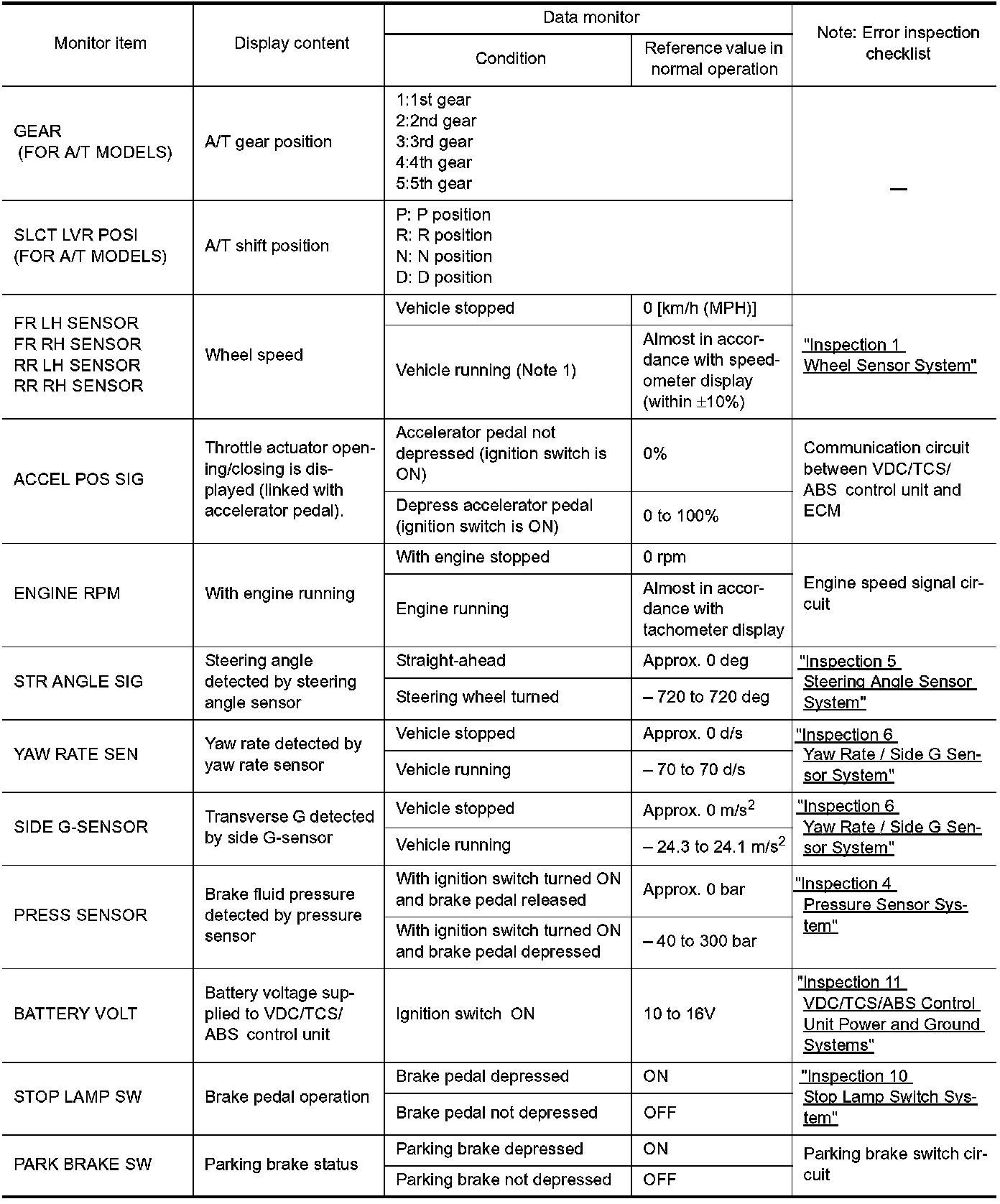

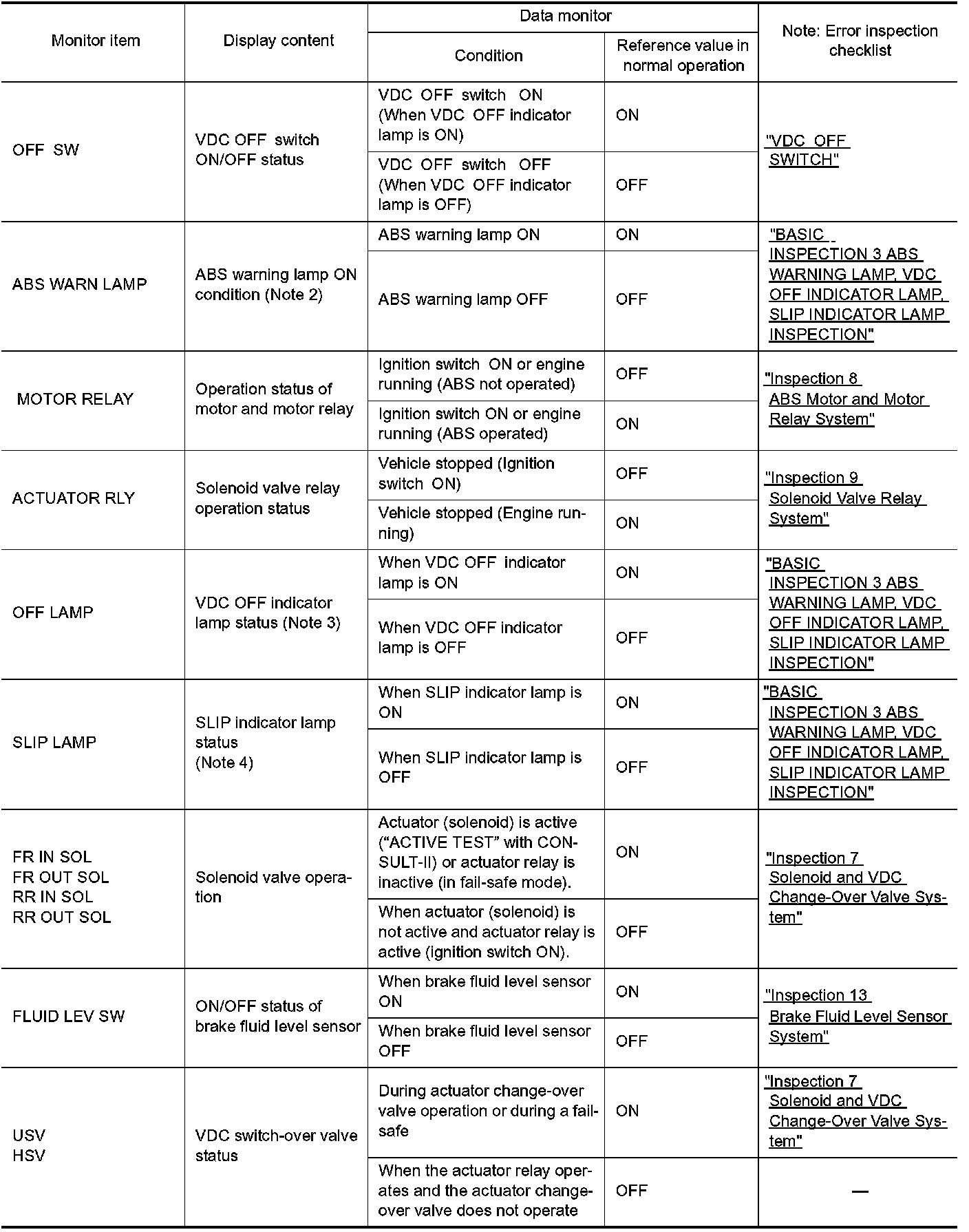

STANDARDS BY CONSULT-II

CAUTION: Items displayed are data calculated by the control unit and may indicate normal operation even if out put circuit (harness) is open or shorted.








Note 1: Confirm tire pressure is normal.
Note 2: ON/OFF timing of ABS warning lamp.
ON: After ignition switch is turned ON, or when a malfunction is detected.
OFF: After ignition switch is turned ON (when system is in normal operation).
(Note 3): ON/OFF timing of VDC OFF indicator lamp
ON: Approximately 1 seconds after ignition switch is turned ON, or when a malfunction is detected and VDC OFF switch is ON.
OFF: After ignition switch is turned ON (when system is in normal operation.) And when VDC OFF switch is OFF.
Note 4: SLIP indicator lamp ON/OFF timing
ON: After ignition switch is turned ON, or when a malfunction is detected and VDC/TCS function is activated while driving.
OFF: After ignition switch is turned ON (when system is in normal operation) and VDC/TCS function is not activated.
Flashing: VDC/TCS function is active during driving
