Door Harness Connectors
Door Harness Connectors

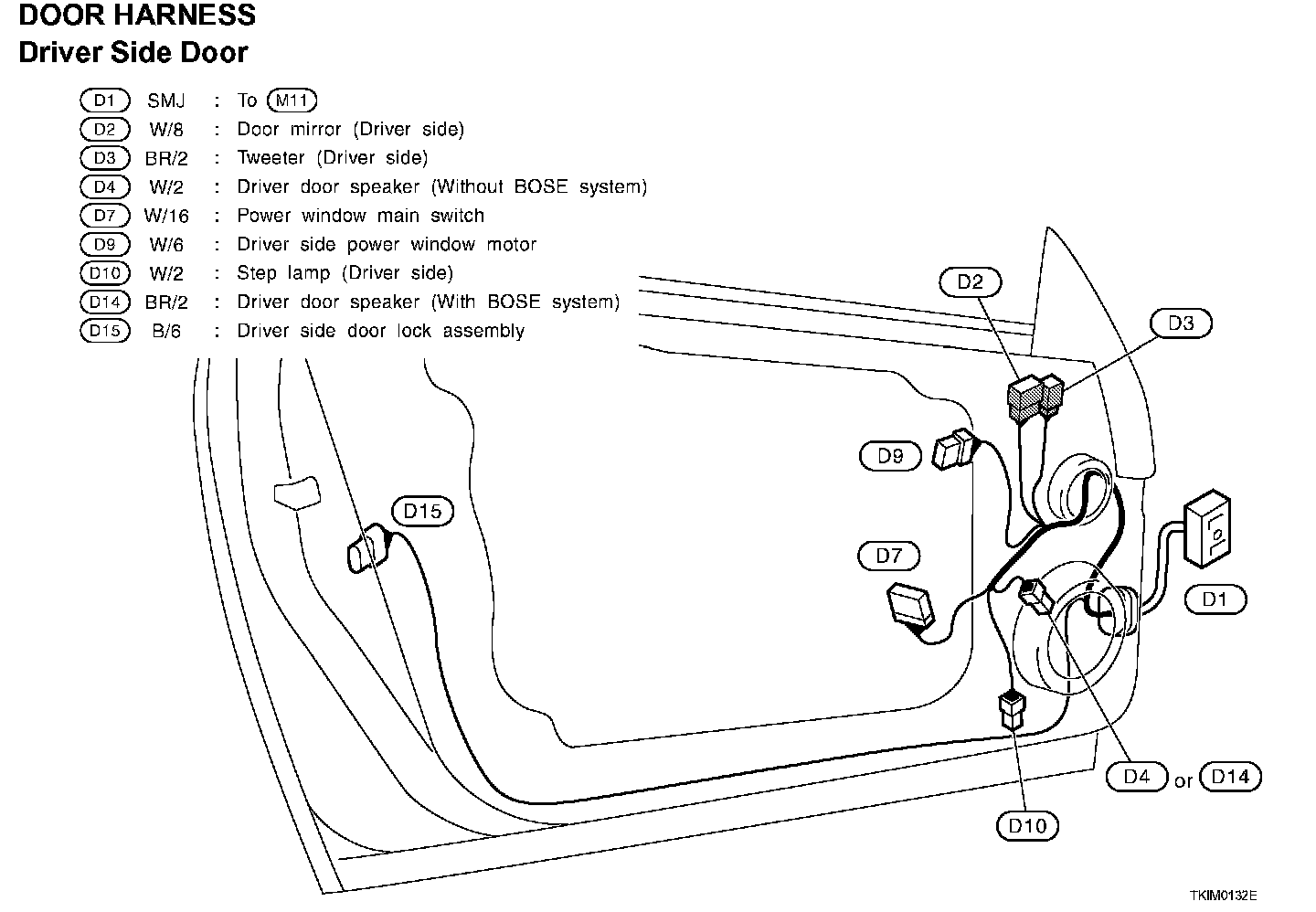

Door Harness - Driver Side Door:

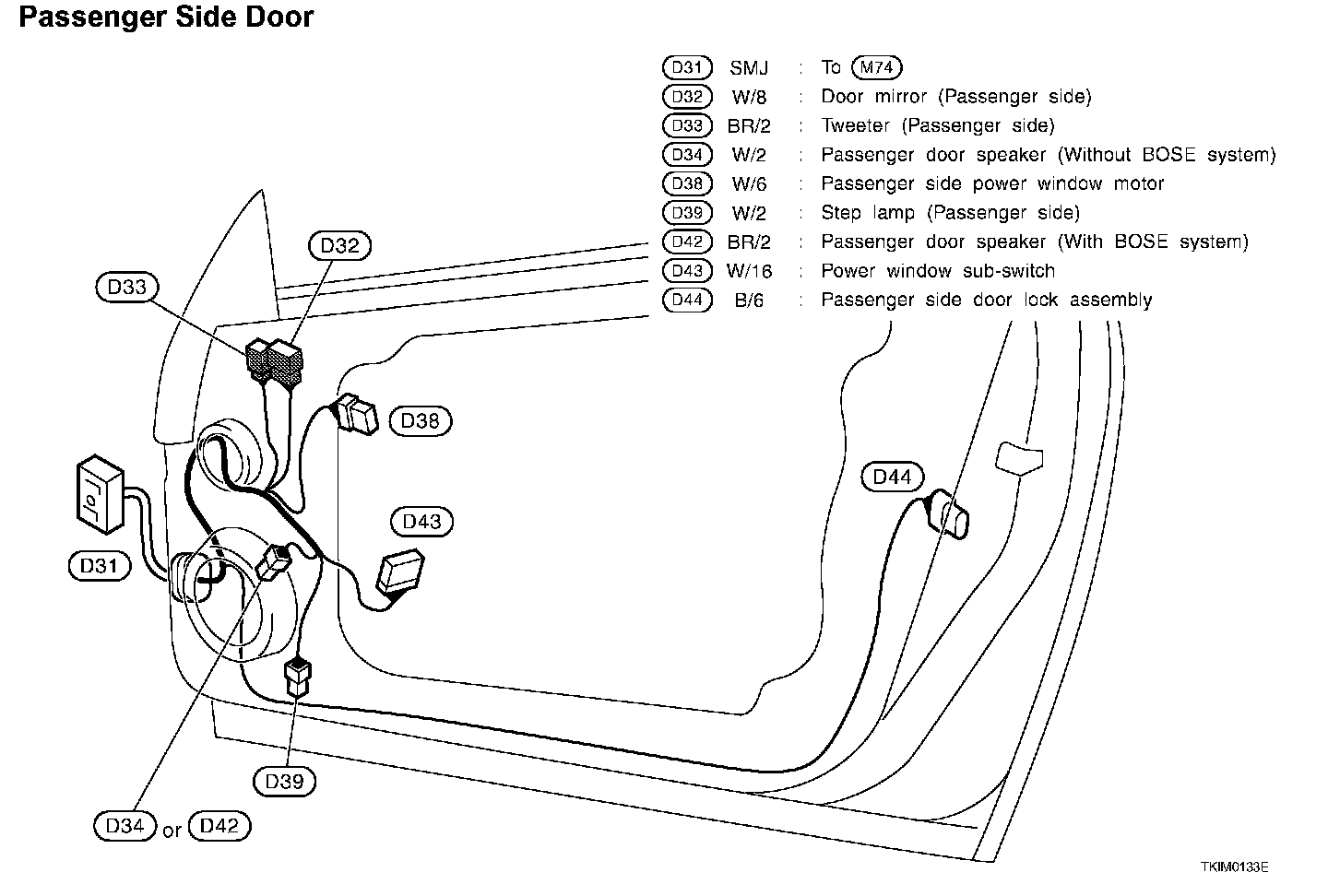

Door Harness - Passenger Side Door:
