Engine Room Harness Connectors

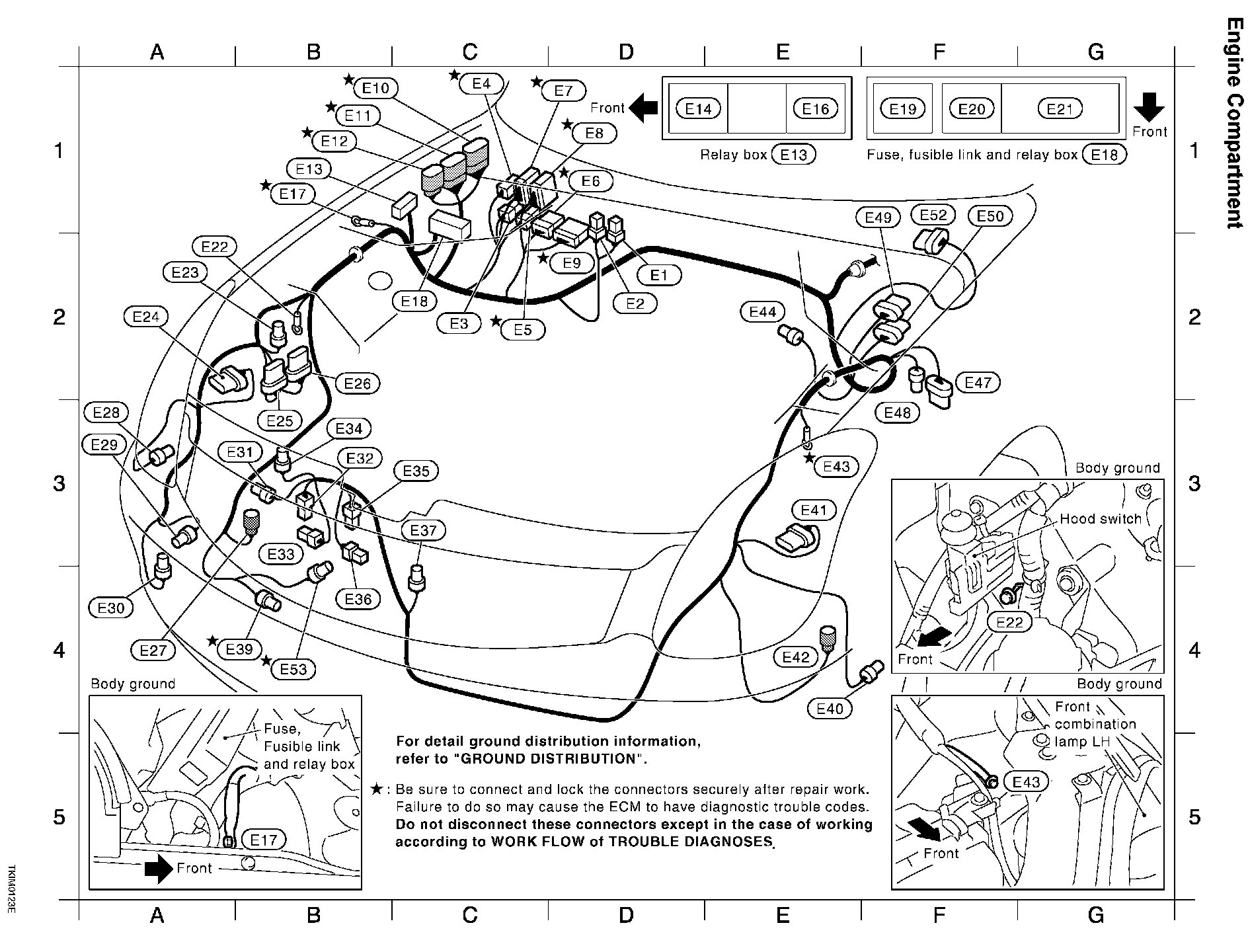

Engine Room Harness:



Engine Room Harness:



Passenger Compartment:

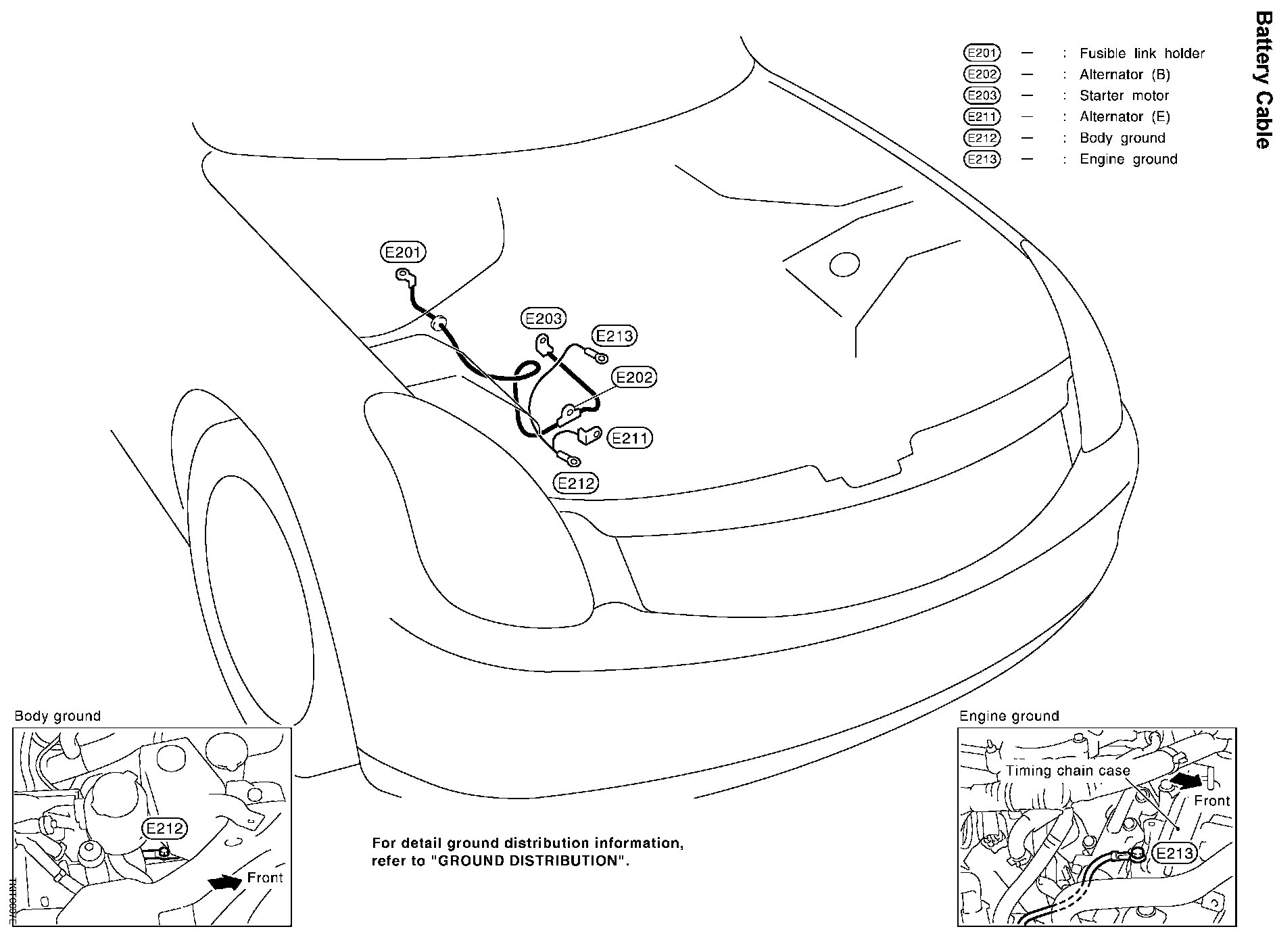

Battery Cable:
