Wiring Diagram
BRC-VDC-01:
BRC-VDC-02:

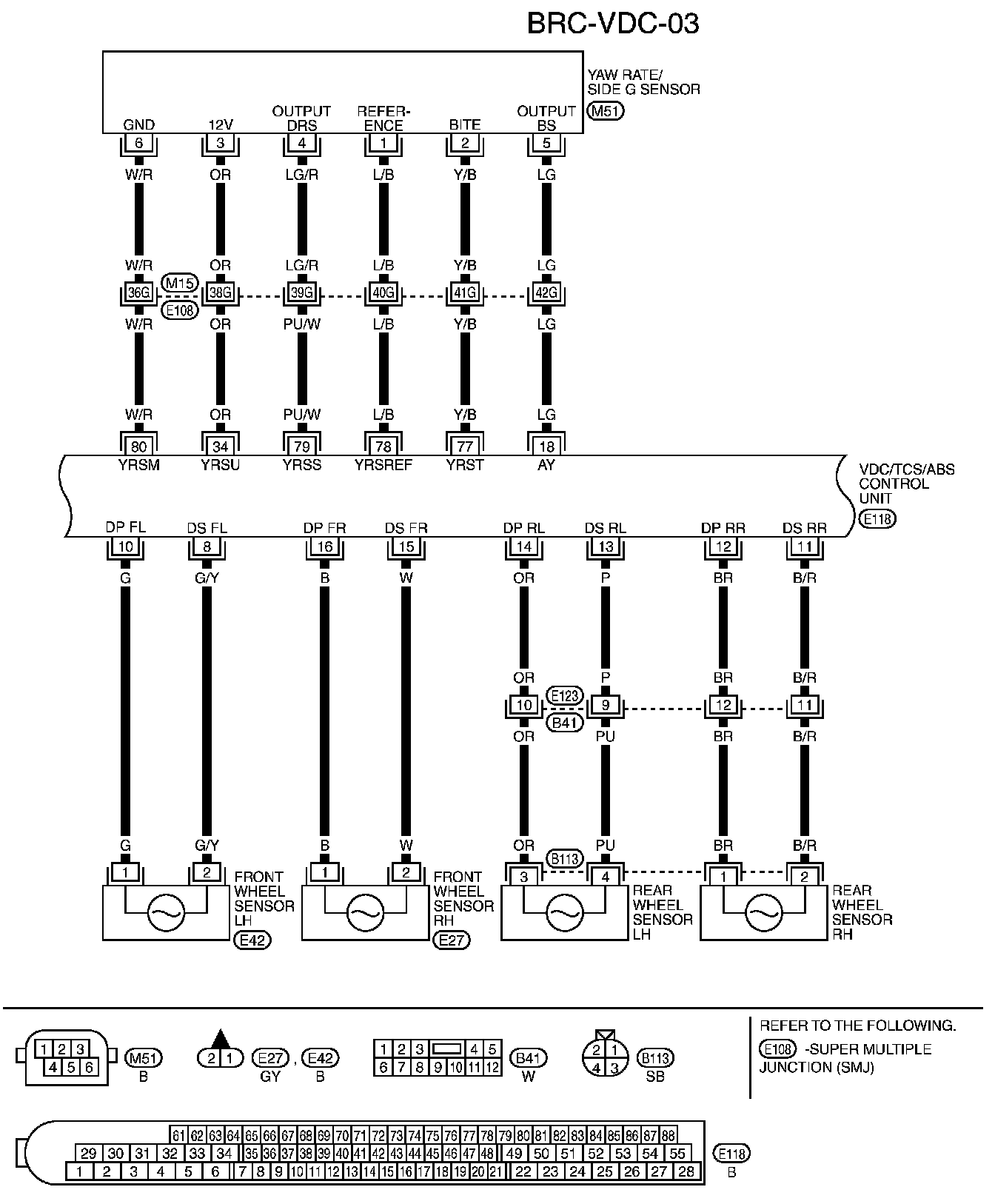

BRC-VDC-03:
BRC-VDC-04:
BRC-VDC-05:

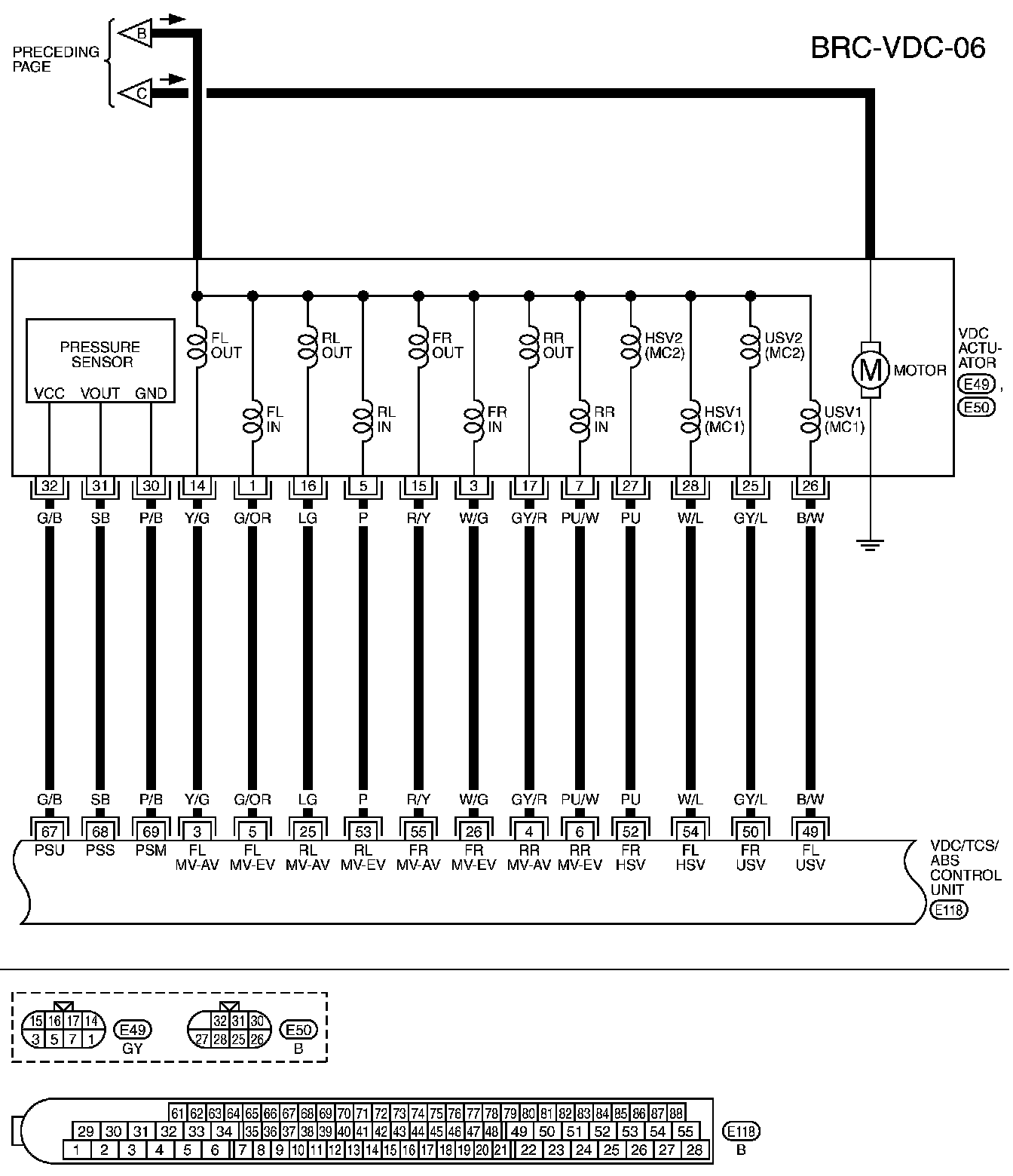

BRC-VDC-06:

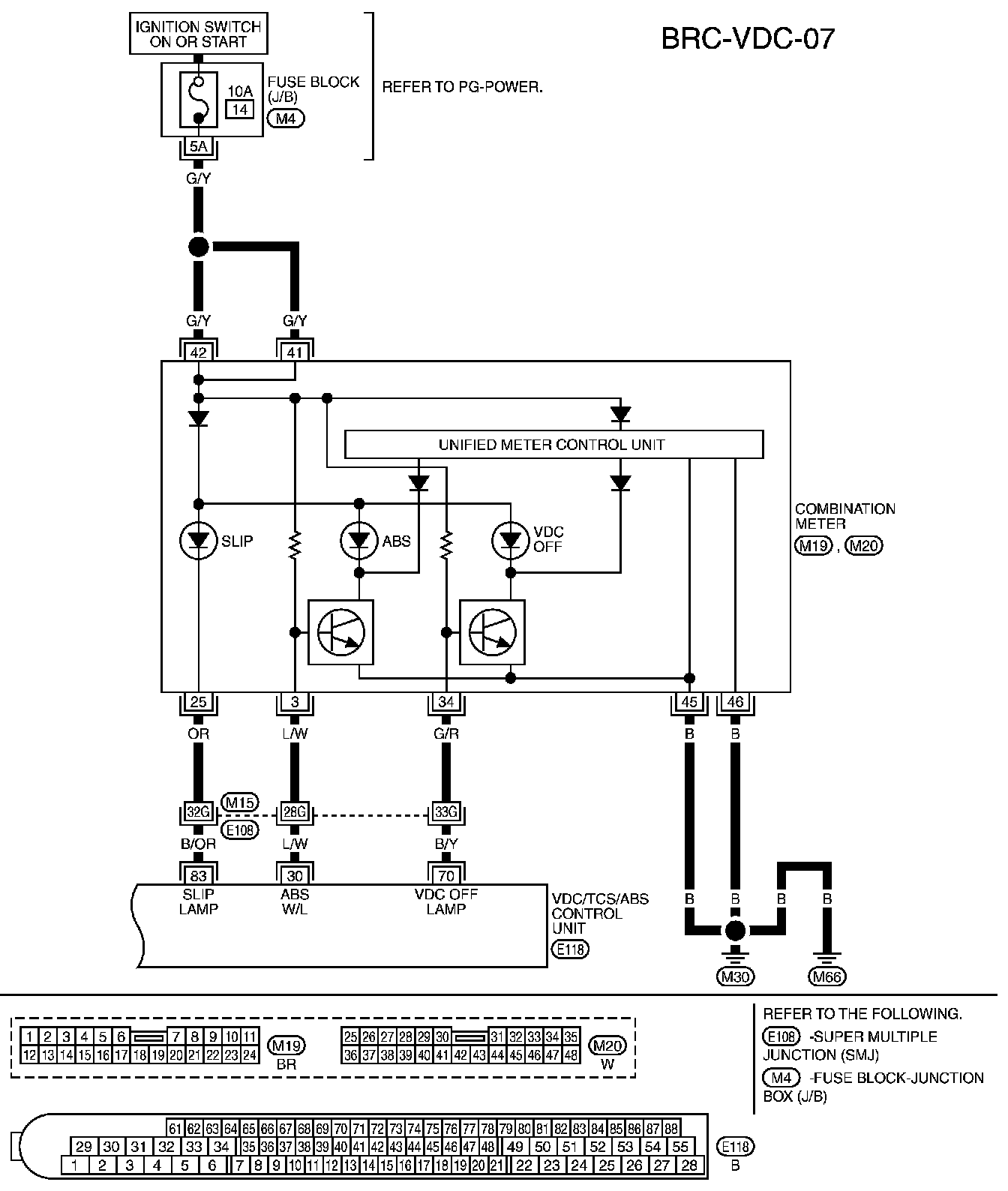

BRC-VDC-07:
Diagrams: Other diagrams refered to by name, within these diagrams can be found at Diagrams By Name. Diagrams By Diagram Name
Diagrams: Other diagrams refered to by name, within these diagrams can be found at Diagrams By Name. Diagrams By Diagram Name
