ATC Diagrams (Automatic Air Conditioner)

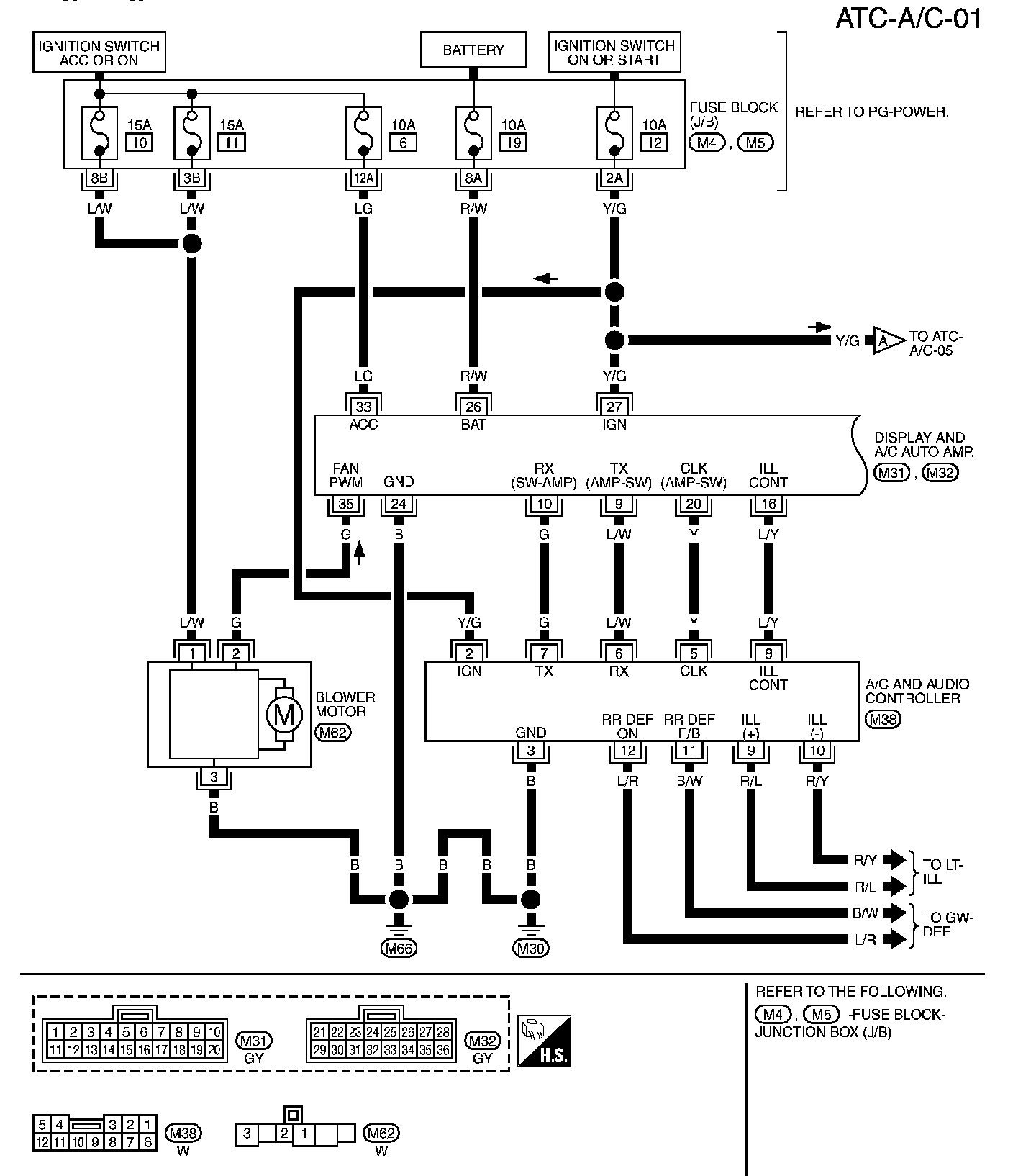

ATC-A/C-O1:

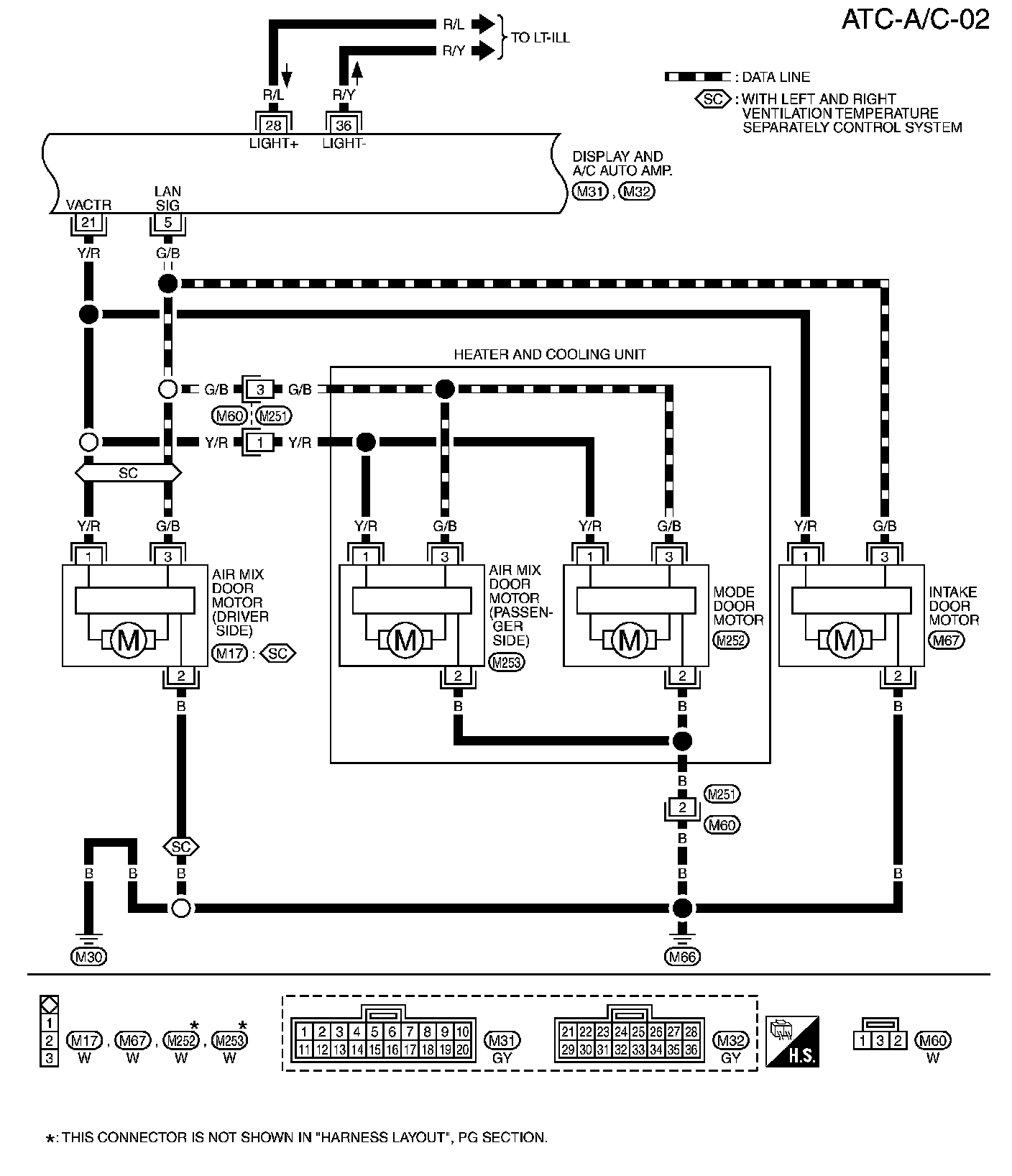

ATC-A/C-O2:



ATC-A/C-O3:



ATC-A/C-O4:

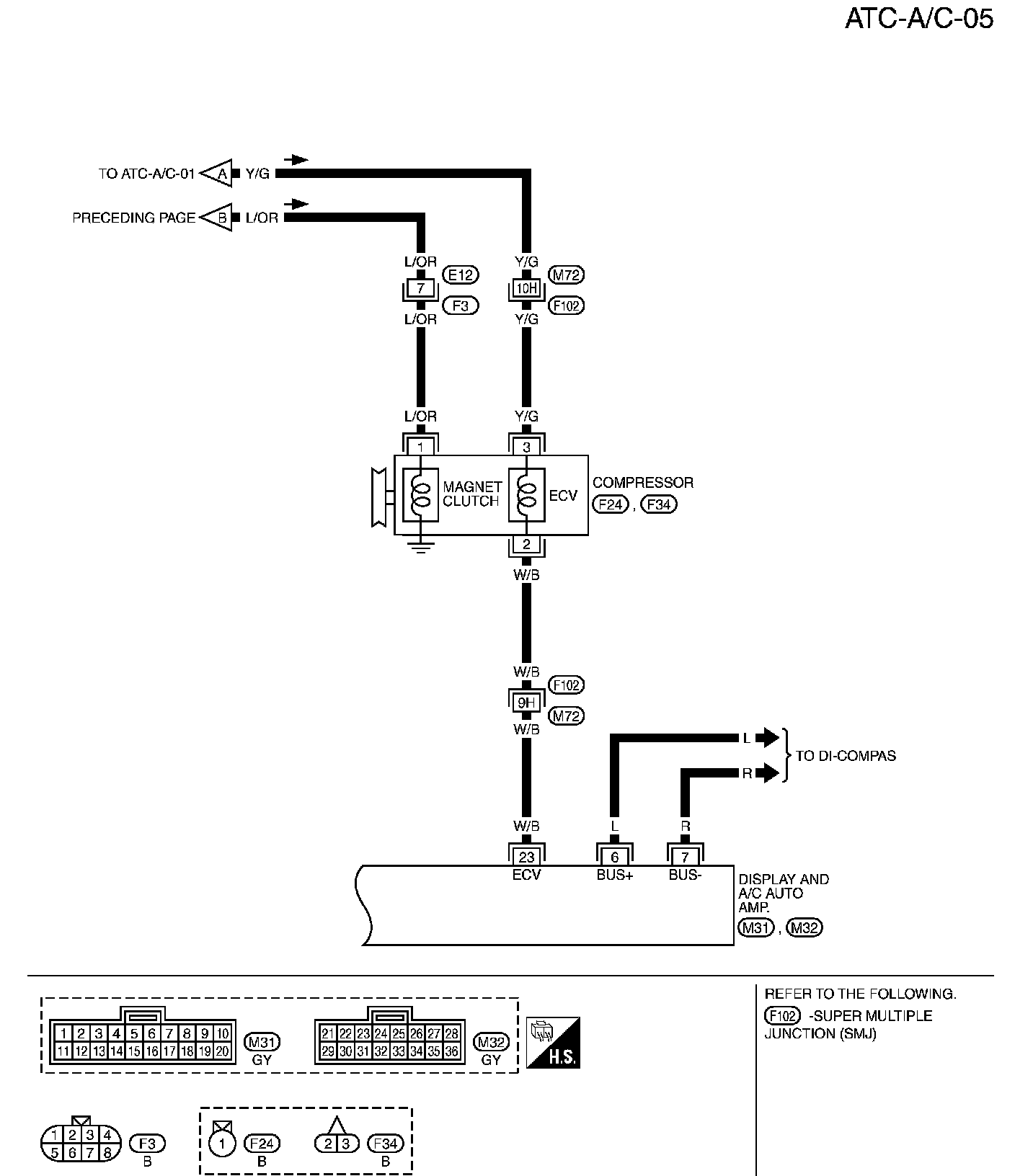

ATC-A/C-O5:
