Fluid Pressure Sensor/Switch, A/T
Fluid Pressure Sensor/Switch, A/T

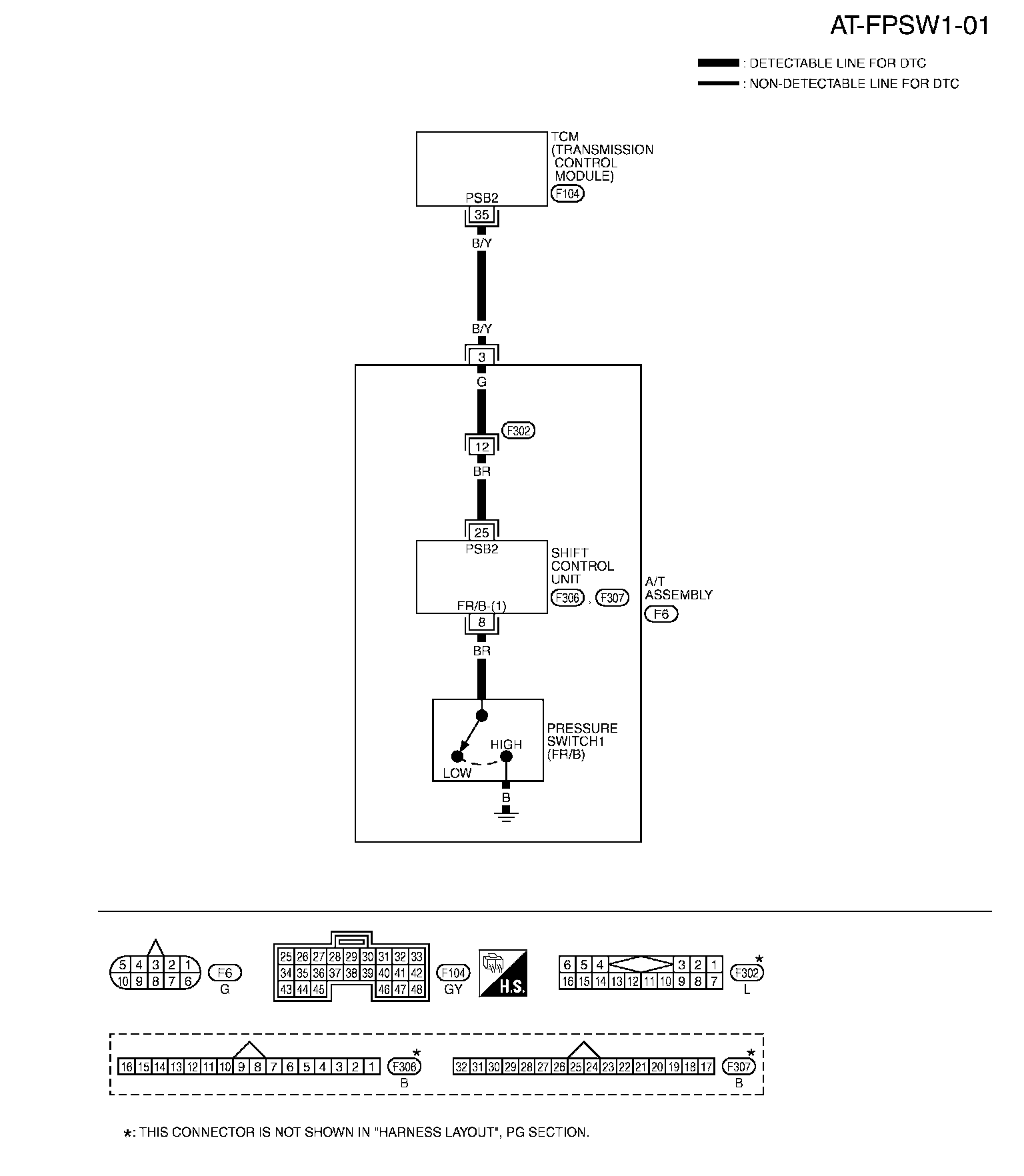

AT-FPSW1-01:

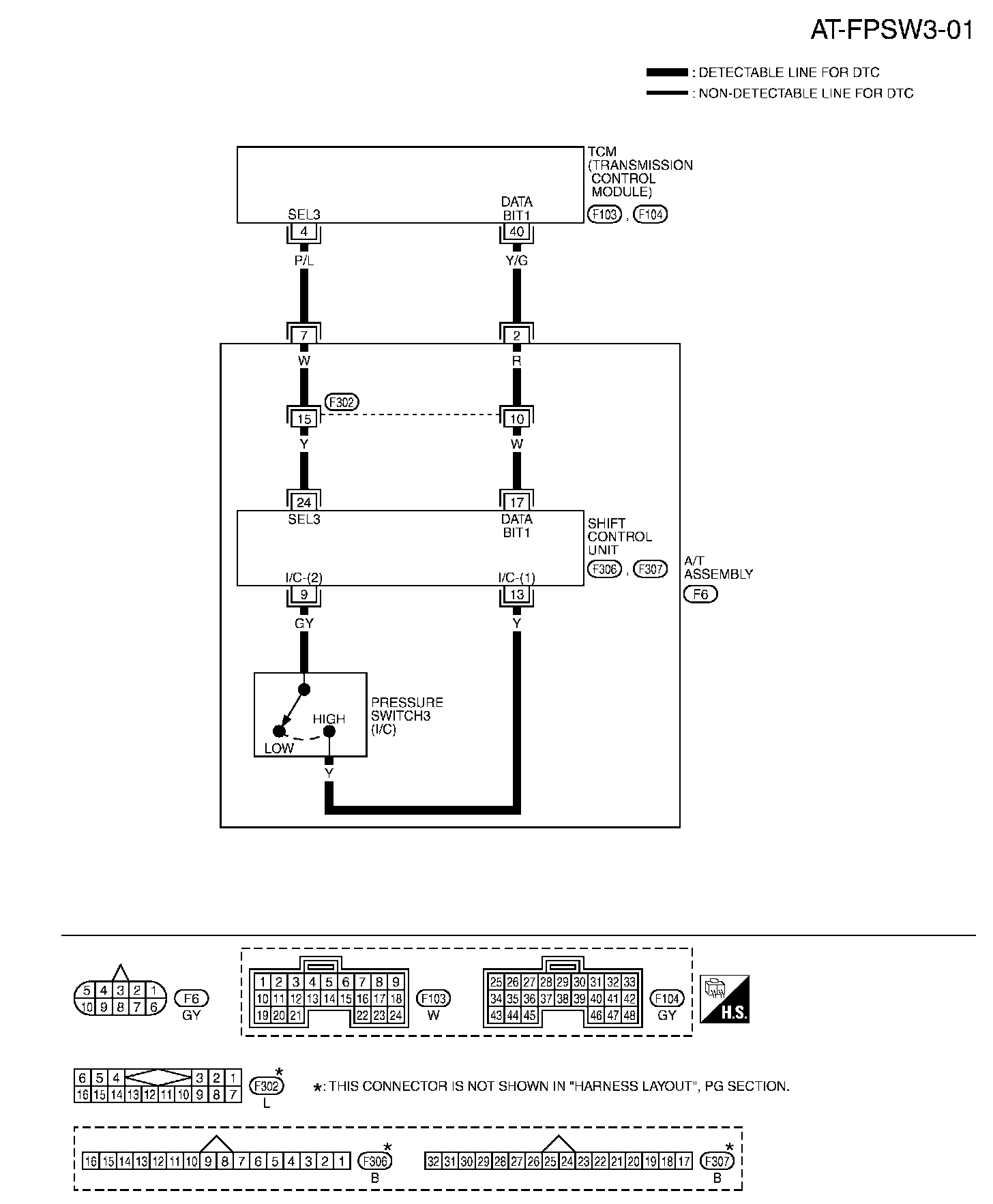

AT-FPSW3-01:

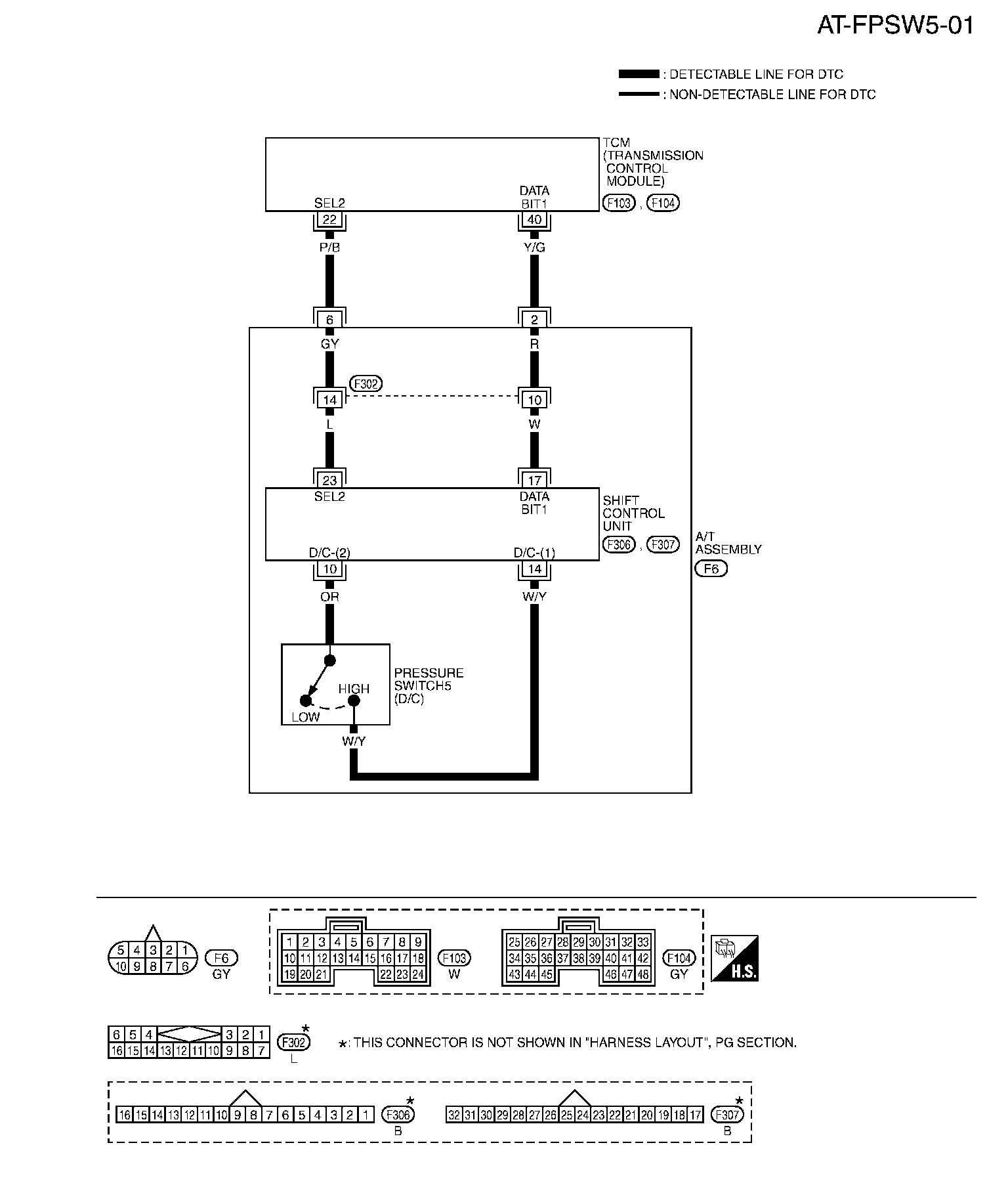

AT-FPSW5-01:

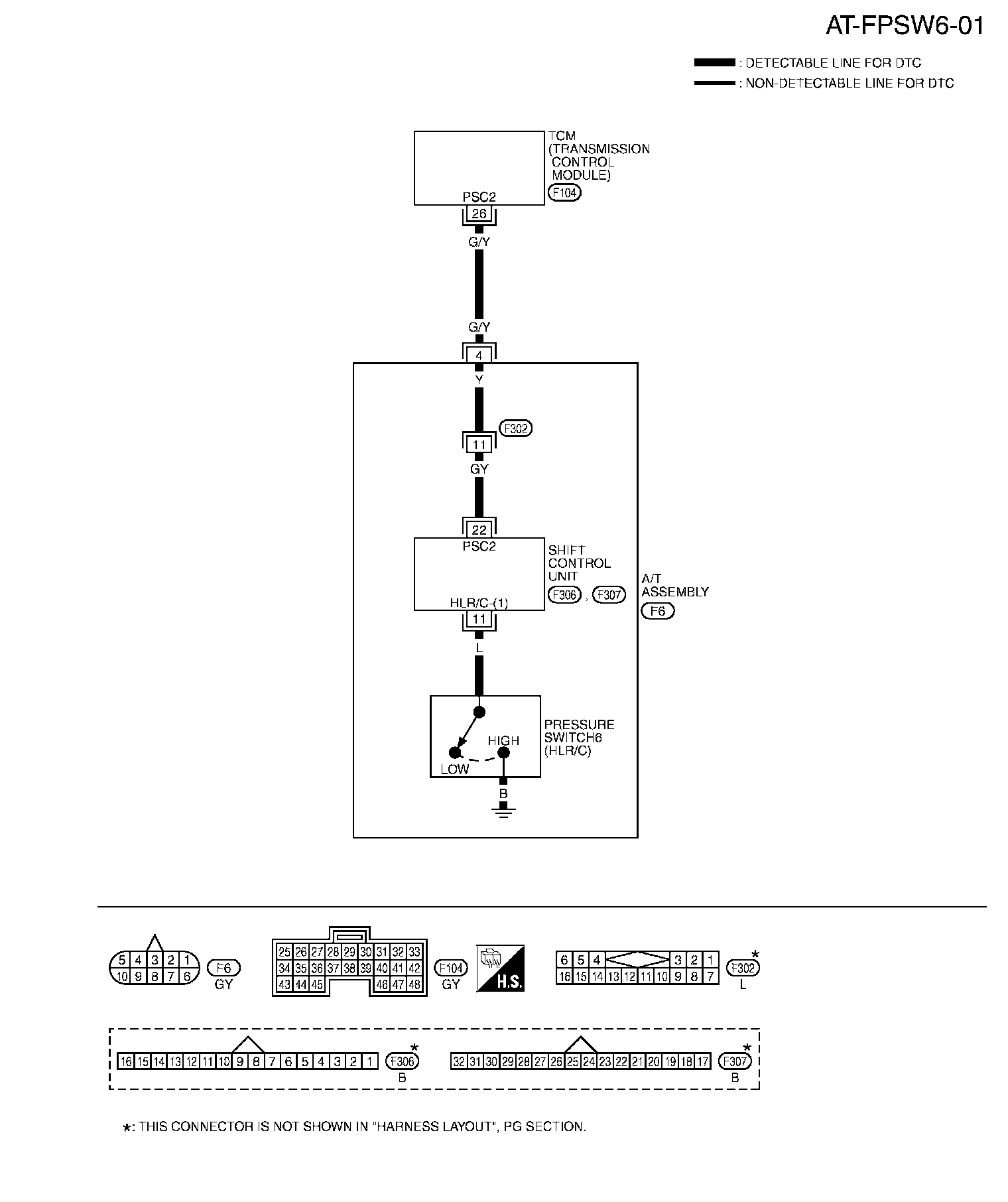

AT-FPSW6-01:
Diagrams:
Other diagrams referred to by name within these diagrams can be found at
Diagrams by Diagram Name.
