Home >> Infiniti >> 2004 >> G35 Coupe V6-3.5L (VQ35DE) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Parking Lamp >> Parking, License Plate and Tail Lamps Schematic

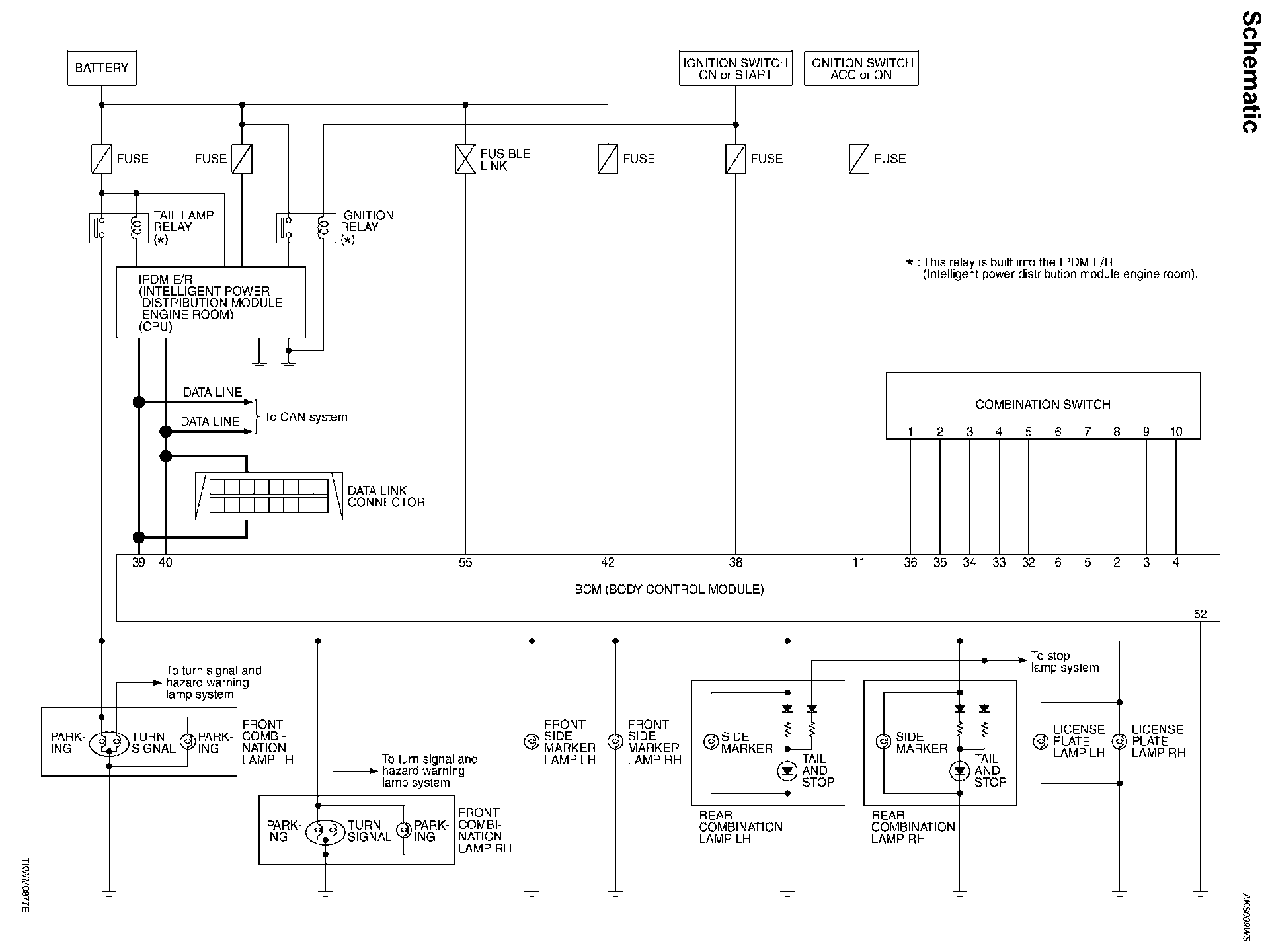

Parking, License Plate and Tail Lamps Schematic

Parking,License Plate And Tail Lamps Schematic:
