Automatic Transmission Wiring Diagrams

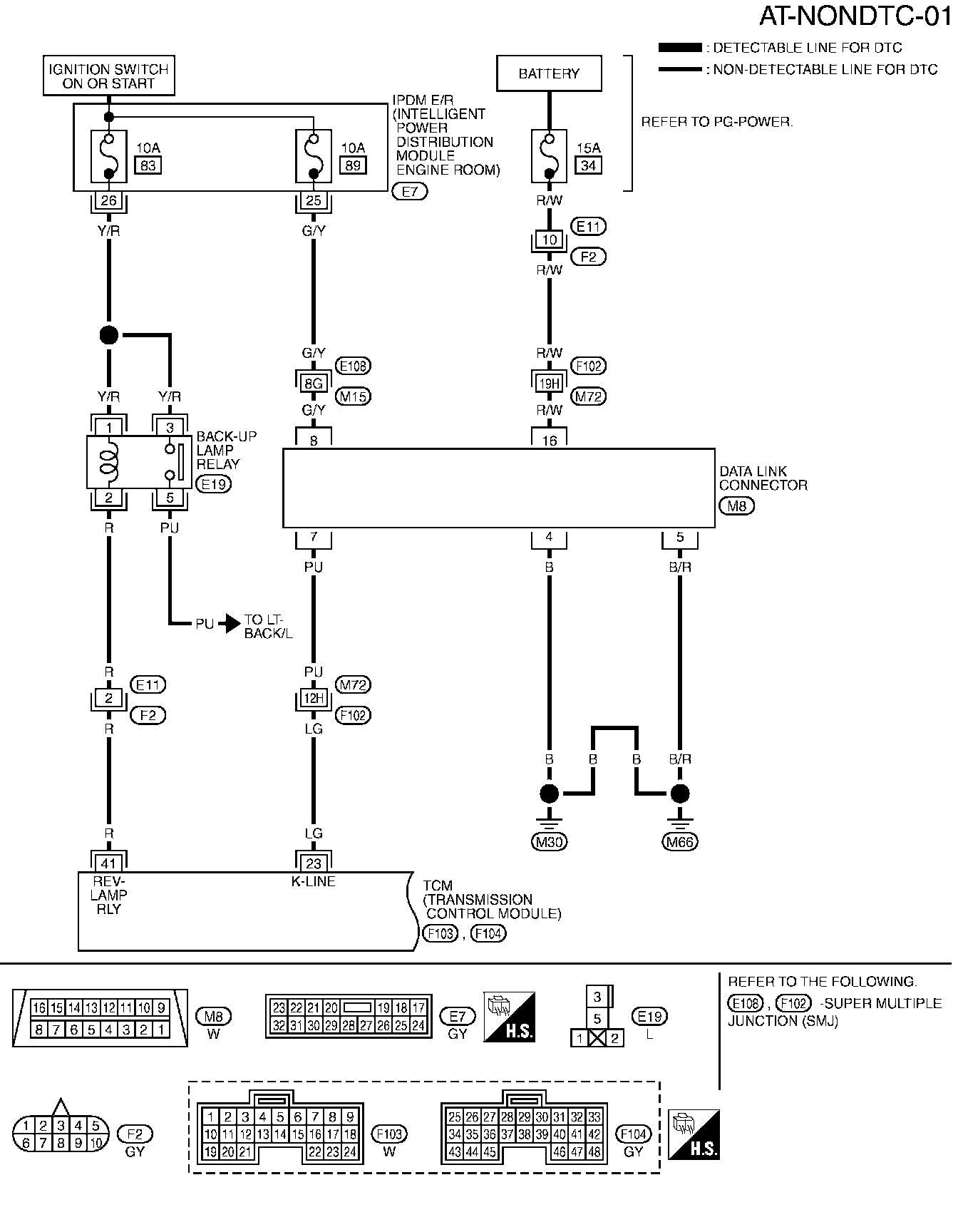

AT-NONDTC-01:

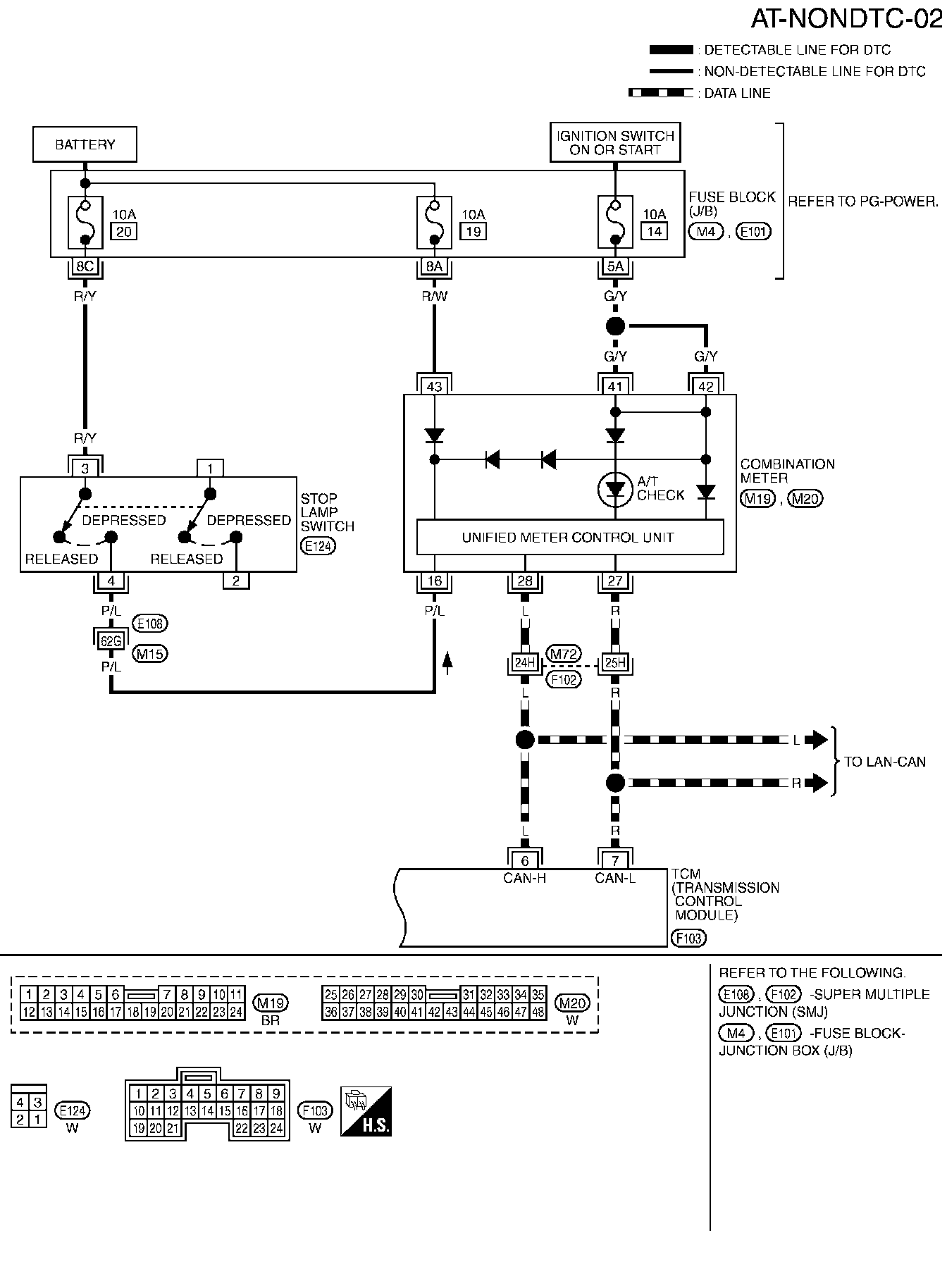

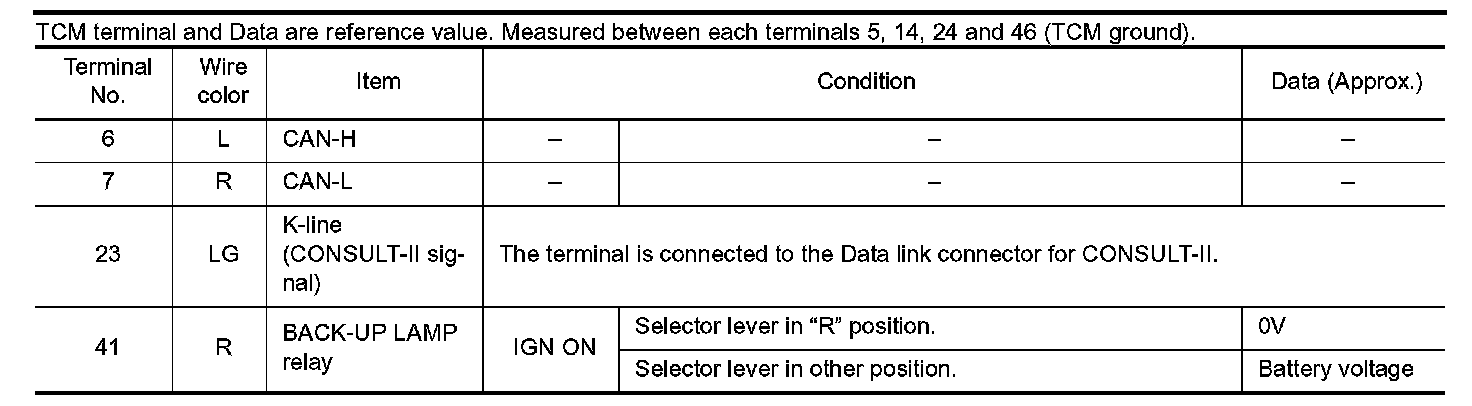

AT-NONDTC-02:

Wiring Diagram-AT-NONDTC

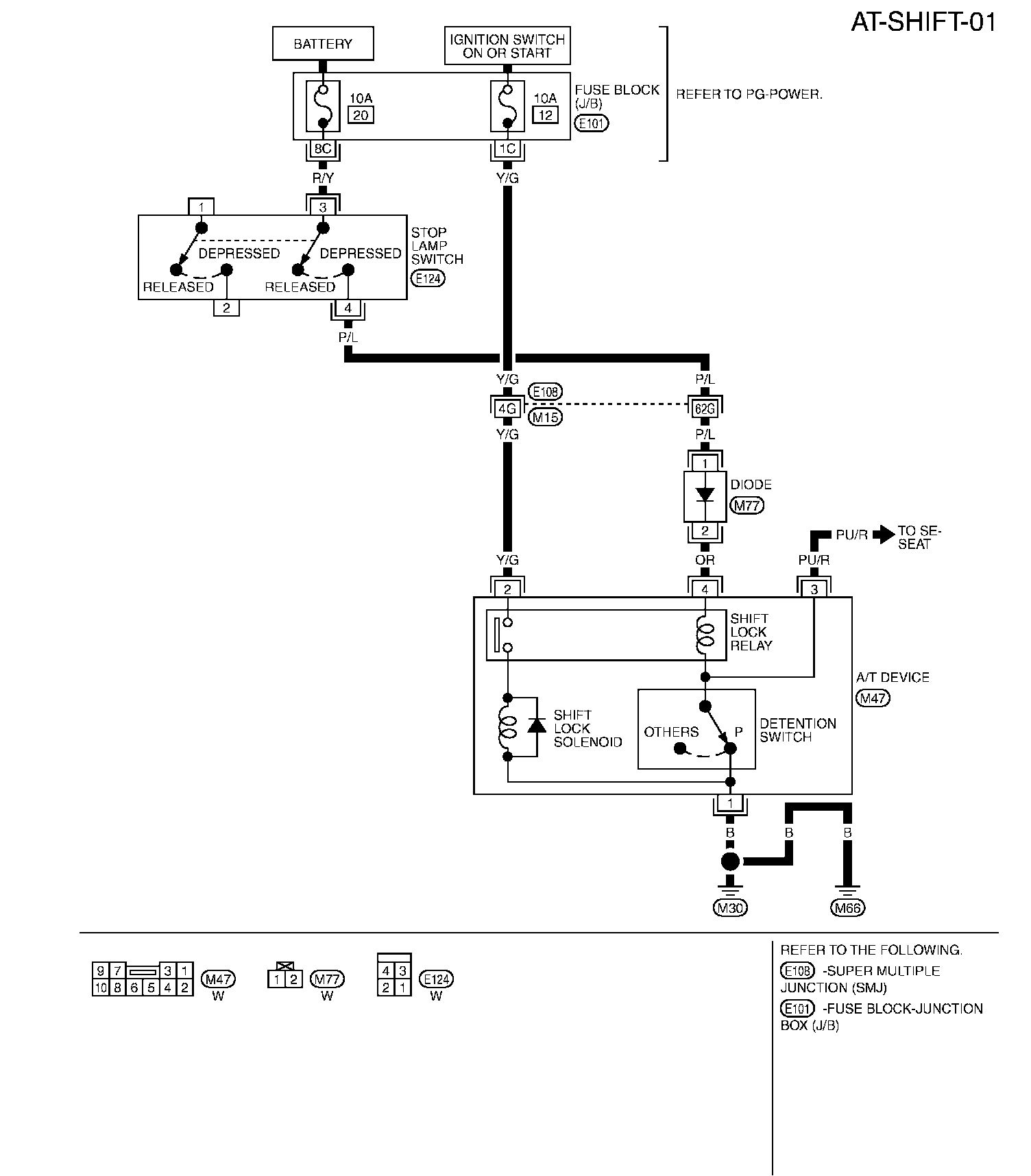

AT-SHIFT-01:

Wiring Diagram-AT-SHIFT
