Cylinder Head Gasket
Cylinder Head Gasket

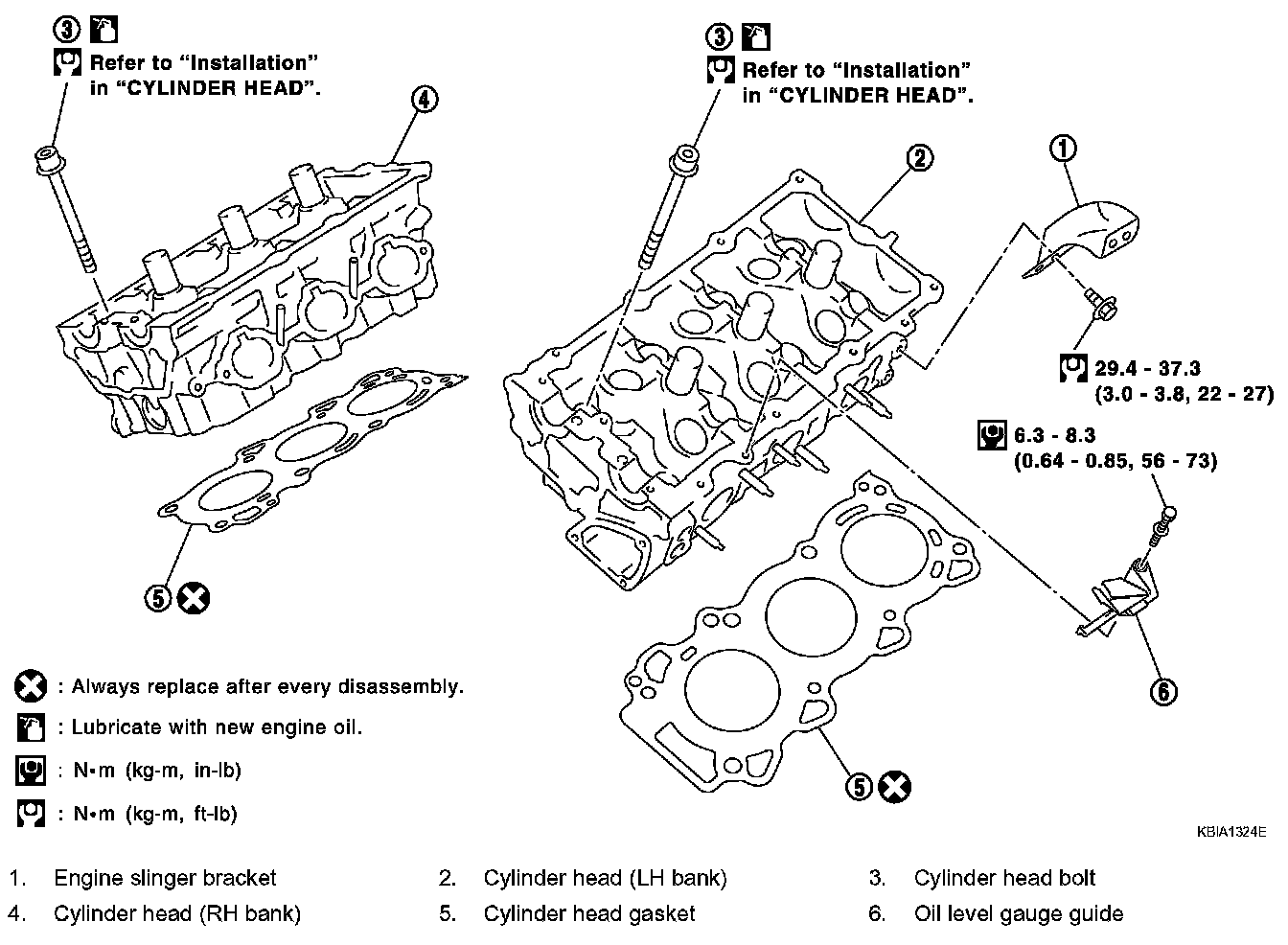

Cylinder Head Assembly Removed:

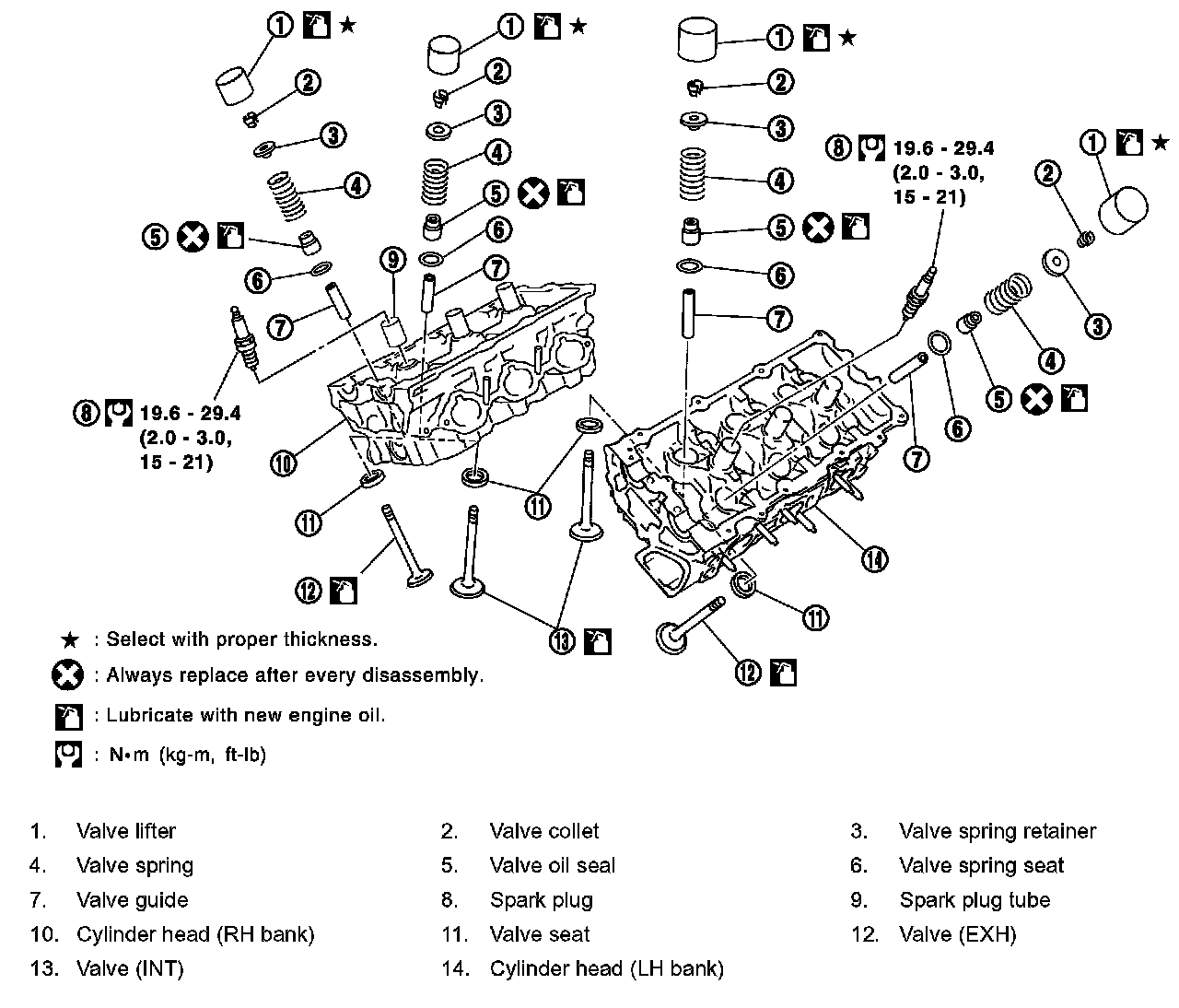

Cylinder Head Disassembly:
