Cylinder Block Assembly: Specifications

Cylinder Block - Service Specifications:

Cylinder Block - Main Journal Grades:

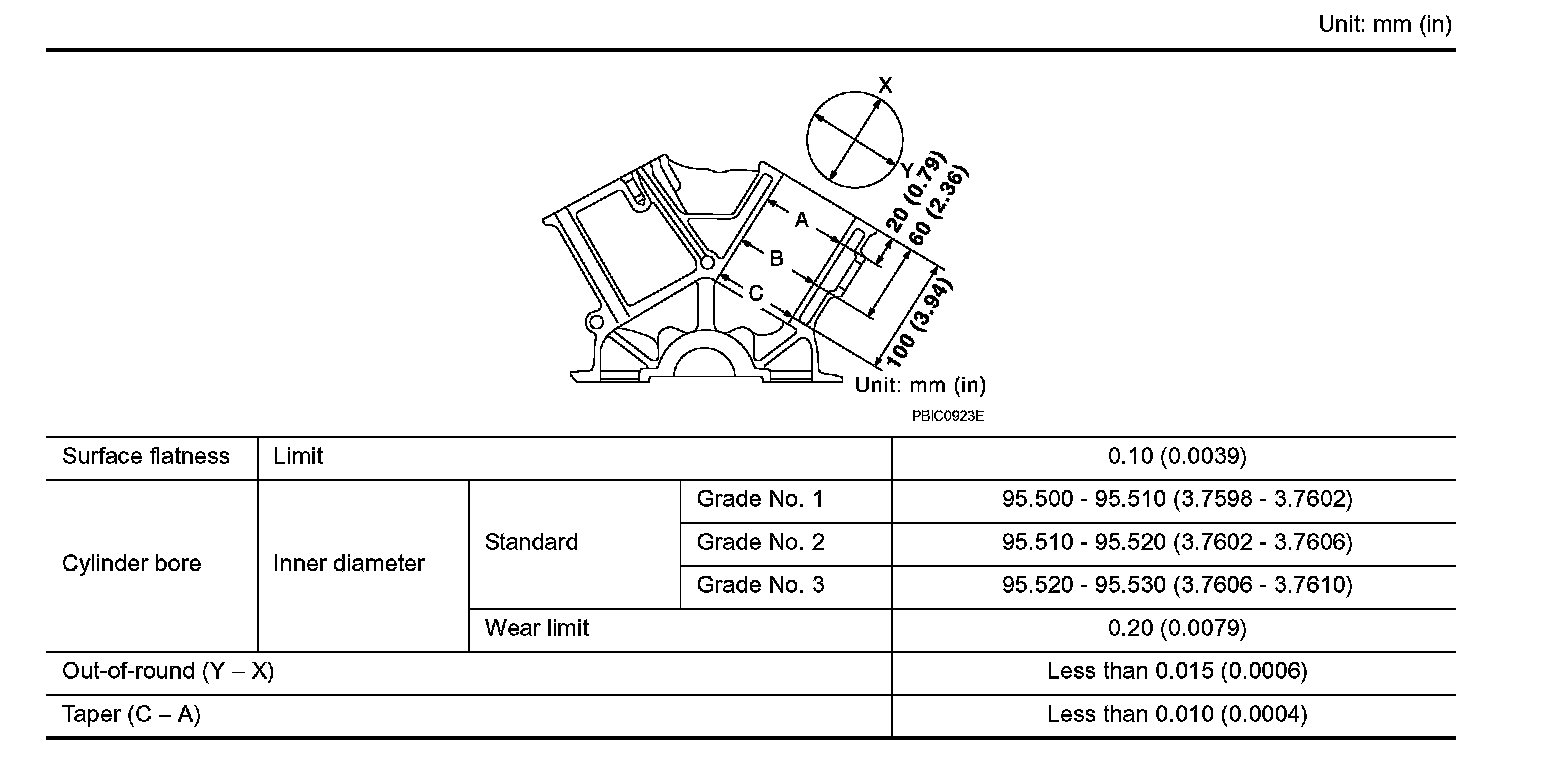

CYLINDER BLOCK


Cylinder block drain plug (LH): 17.6 - 21.6 Nm (1.8 - 2.2 kgf-cm, 13 - 15 ft. lbs.)
Cylinder block drain plug (RH): 17.6 - 21.6 Nm (1.8 - 2.2 kgf-cm, 13 - 15 ft. lbs.)
Cylinder block drain plug (Front side): 7.8 - 11.8 Nm (0.8 - 1.2 kgf-cm, 69 - 104 inch lbs.)

Available Piston:

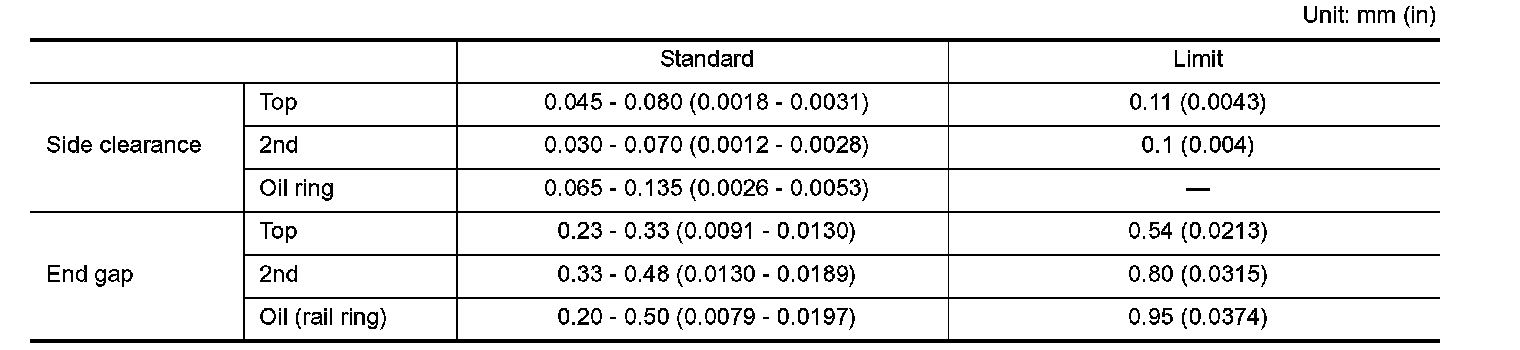

Piston Ring:

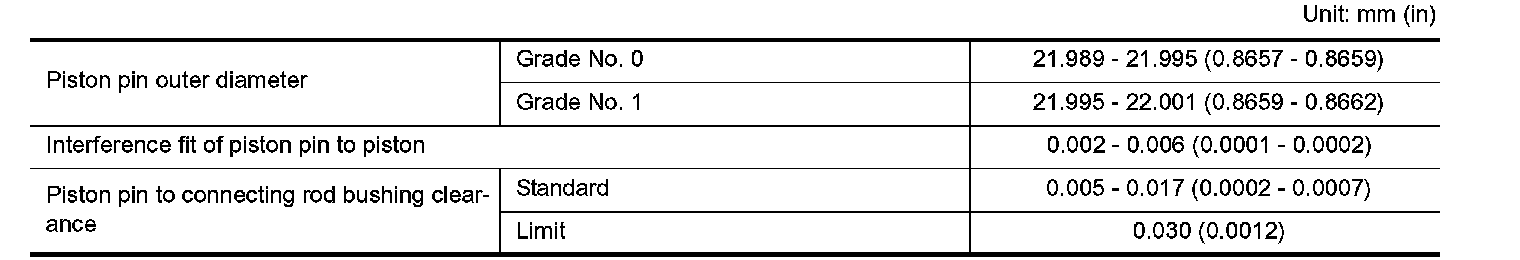

Piston Pin:

PISTON, PISTON RING AND PISTON PIN

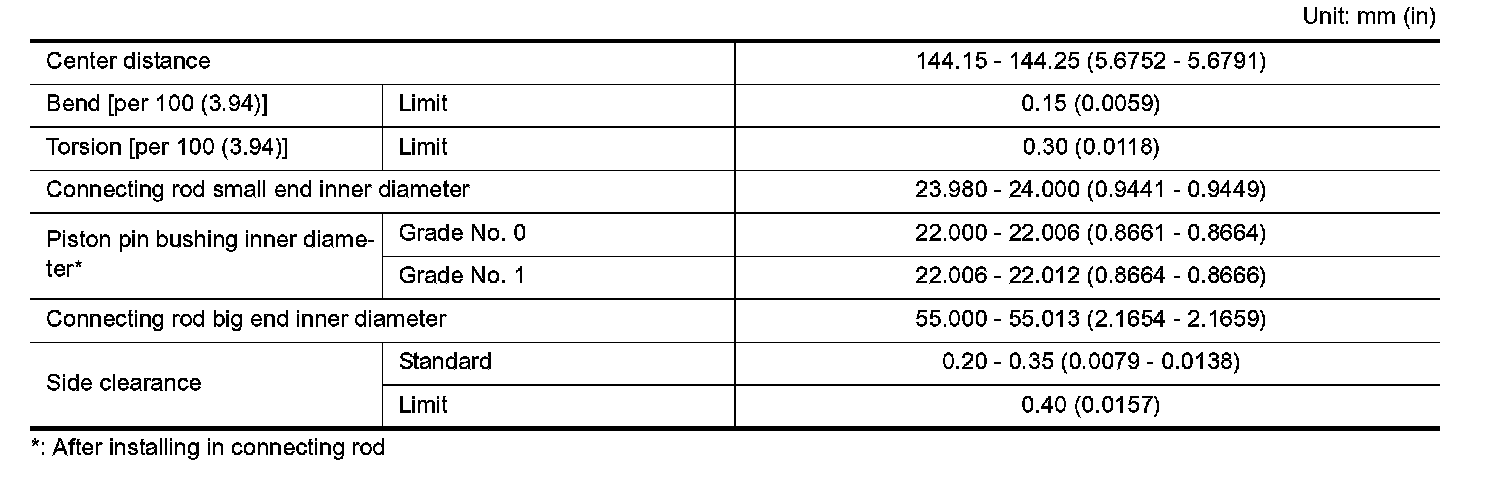

CONNECTING ROD:

CRANKSHAFT:

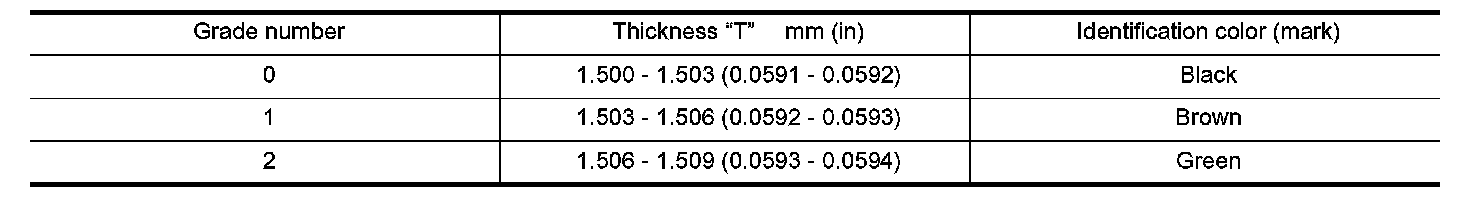

AVAILABLE MAIN BEARING:

AVAILABLE MAIN BEARING - Undersize:

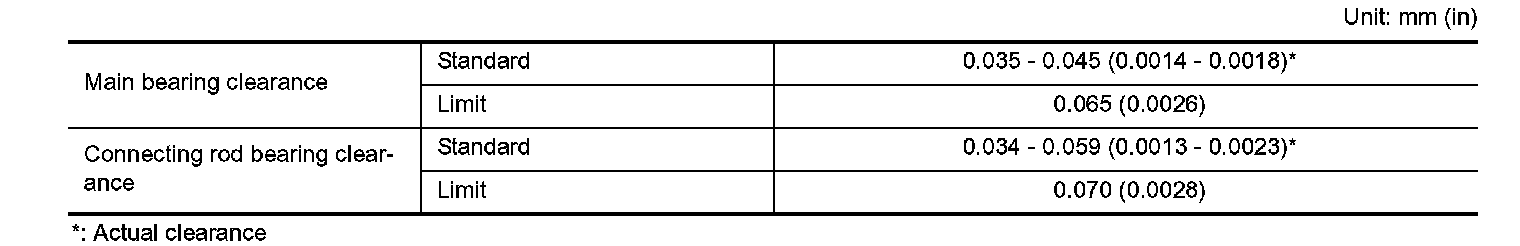

CONNECTING ROD BEARING:

CONNECTING ROD BEARING - Undersize:

Crank pulley
1) 39.2 - 49.0 Nm (4.0 - 5.0 kgf-cm, 29 - 36 ft. lbs.)
2) 60° - 66° (angle tightening)

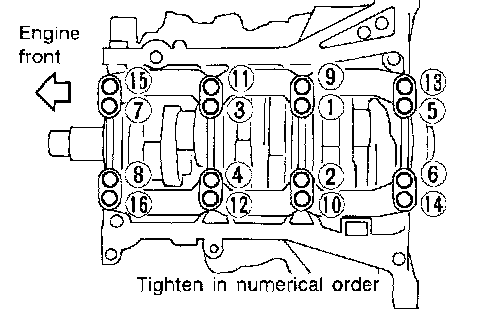

Main bearing caps are identified by identification mark cast on them. For installation, face front mark to front side.







Main Bearing Cap Bolts 32.3 to 38.3 Nm (3.3 to 3.9 kgf-cm, 24 to 28 ft. lbs.).

NOTE: Main bearing cap cannot be replaced as a single part, because it is machined together with cylinder block.


Connecting rod
1) 18.6 - 20.6 Nm (1.9 - 2.1 kgf-cm, 14 - 15 ft. lbs.)
2) 90° - 95° (angle tightening)
