Cabin Temperature Sensor / Switch: Service and Repair






IN-VEHICLE SENSOR / REMOVAL

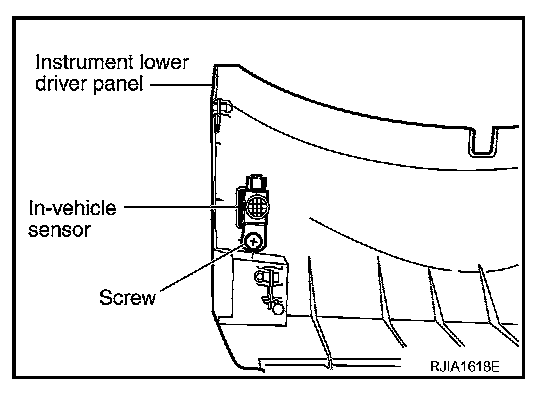

1. Remove instrument lower driver panel.
2. Remove in-vehicle sensor.


INSTALLATION
Installation is basically the reverse order of removal.
