Cabin Temperature Sensor / Switch: Testing and Inspection

In-vehicle Sensor

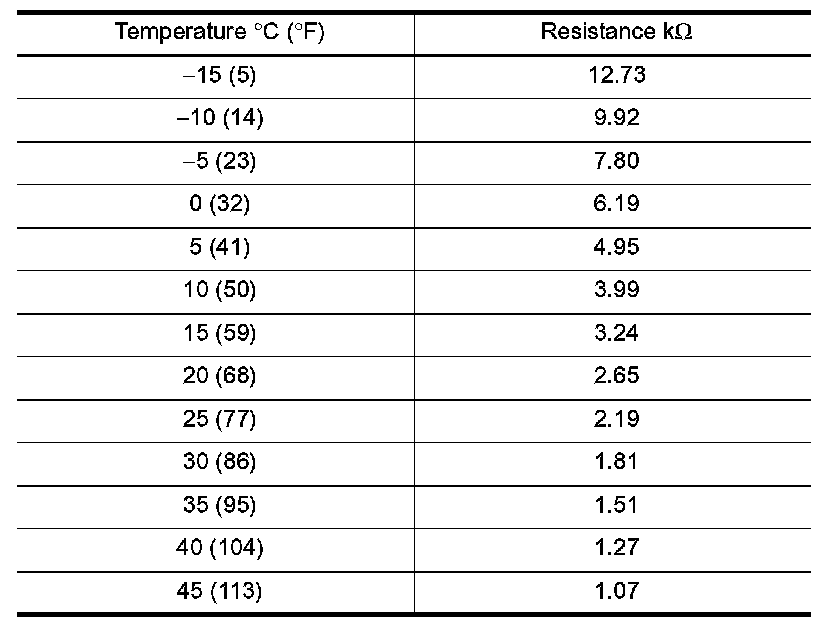

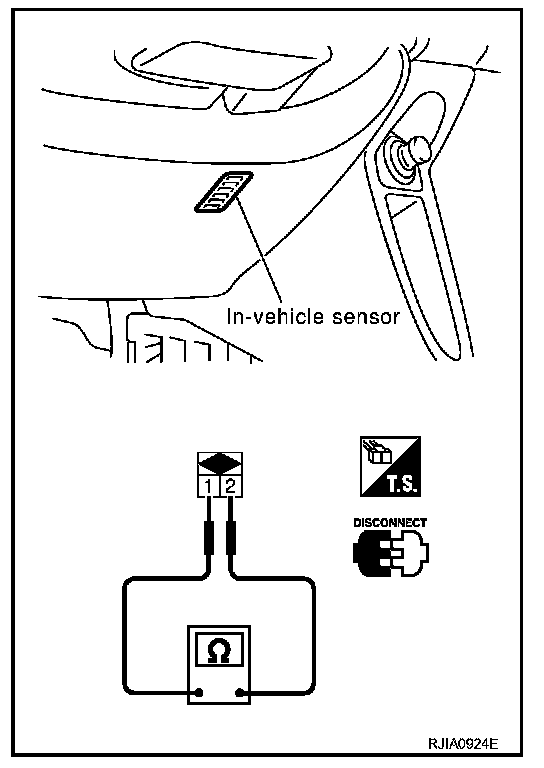

After disconnecting in-vehicle sensor harness connector, measure resistance between terminals 1 and 2 at sensor harness side, using the table.

NG: replace in-vehicle sensor.
