Refrigerant Pressure Sensor / Switch: Service and Repair

Refrigerant Pressure Sensor / REMOVAL
1. Remove the condenser.

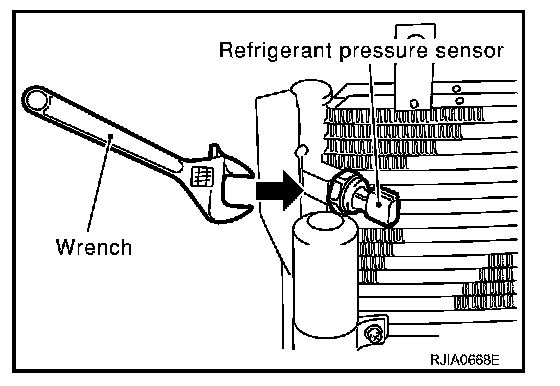

2. Remove the refrigerant pressure sensor from condenser.

CAUTION: When working, be careful not to damage the condenser fins.

INSTALLATION
Installation is basically the reverse order of removal.

CAUTION: Apply compressor oil to the O-ring of the refrigerant pressure sensor when installing it.



Refrigerant pressure sensor
Tightening torque 9.9 - 11.7 Nm (1.0 - 1.2 kg.m, 87 - 104 in-lb)
