With Manufacturer's Scan Tool

CONSULT-II BASIC OPERATION

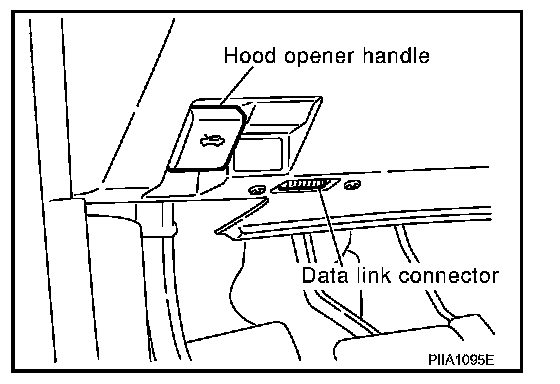

1. With the ignition switch OFF connect CONSULT-II and CONSULT-II CONVERTER" to the date link connector, and turn the ignition switch ON.







2. Touch "START (NISSAN BASED VHCL)".

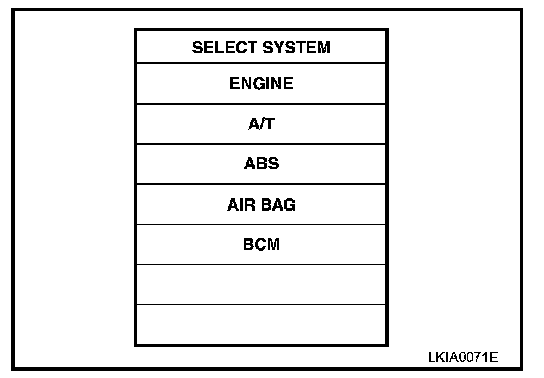

3. Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to CONSULT-II Checking System, "CONSULT-II Data Link Connector (DLC) Circuit".
