Cigarette Lighter: Service and Repair

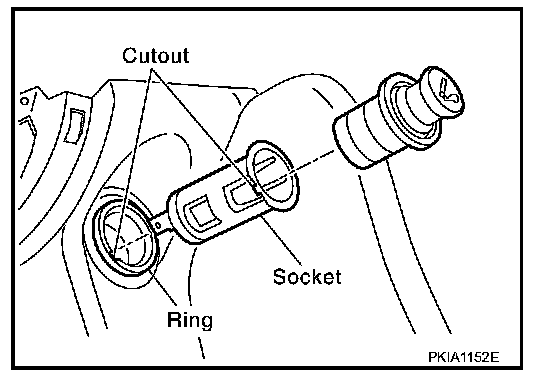

REMOVAL
1. Remove the instrument side panel.
Refer to "INSTRUMENT PANEL".

2. Pull out the cigarette lighter.
3. Remove socket.
4. Press out ring from the back of instrument side panel.

INSTALLATION
Install in the reverse order of removal.
