Removal and Installation
Removal and Installation for Combination MeterREMOVAL
1. Remove column cover.
2. Remove combination switch.
3. Remove instrument lower cover.

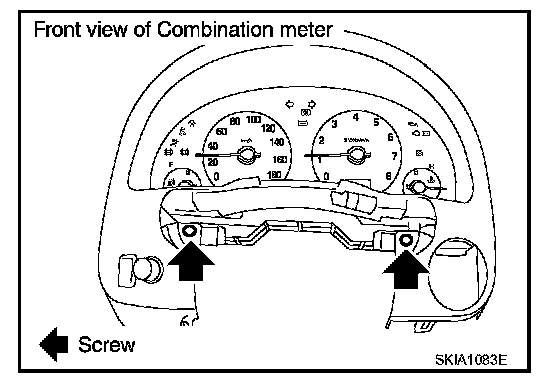

4. Remove the screw (4) and remove cluster lid A and combination meter assembly.
5. Disconnect connectors and remove combination meter.
6. Disassembly cluster lid A and combination meter.
INSTALLATION
Install in the reverse order of removal.
