Backup Lamp: Service and Repair

REMOVAL

Rear Fender Side




1. Open trunk lid and remove trunk rear finisher (end).
2. Disconnect rear combination lamp connector.

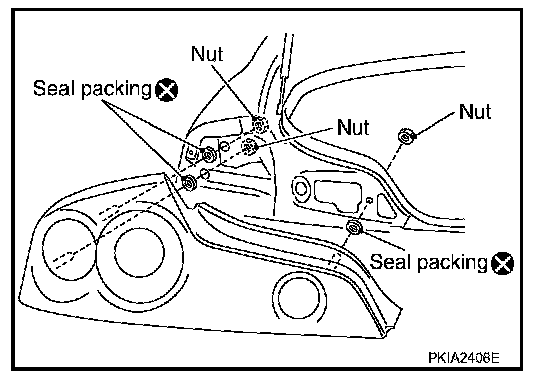

3. Remove rear combination lamp installation nuts.
4. Pull the rear combination lamp toward rear of the vehicle and remove from the vehicle.
5. Remove seal packing from the vehicle.

INSTALLATION
Install in the reverse order of removal. Be careful of the following:

- Install a new seal packing to the rear combination lamp.

CAUTION: Seal packing cannot be reused

Rear combination lamp mounting nut : 3.2 N.m (0.33 kg-m, 28 in-lb)
