Brake Light Switch: Testing and Inspection

Component Inspection

STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.

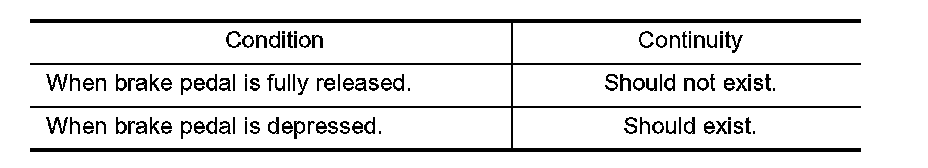

3. Check harness continuity between stop lamp switch terminals 1 and 2 under the given conditions.

If NG adjust stop lamp switch installation refer to "BRAKE PEDAL" and perform step 3 again.
