Electrical Diagrams

LT-F/FOG-01:

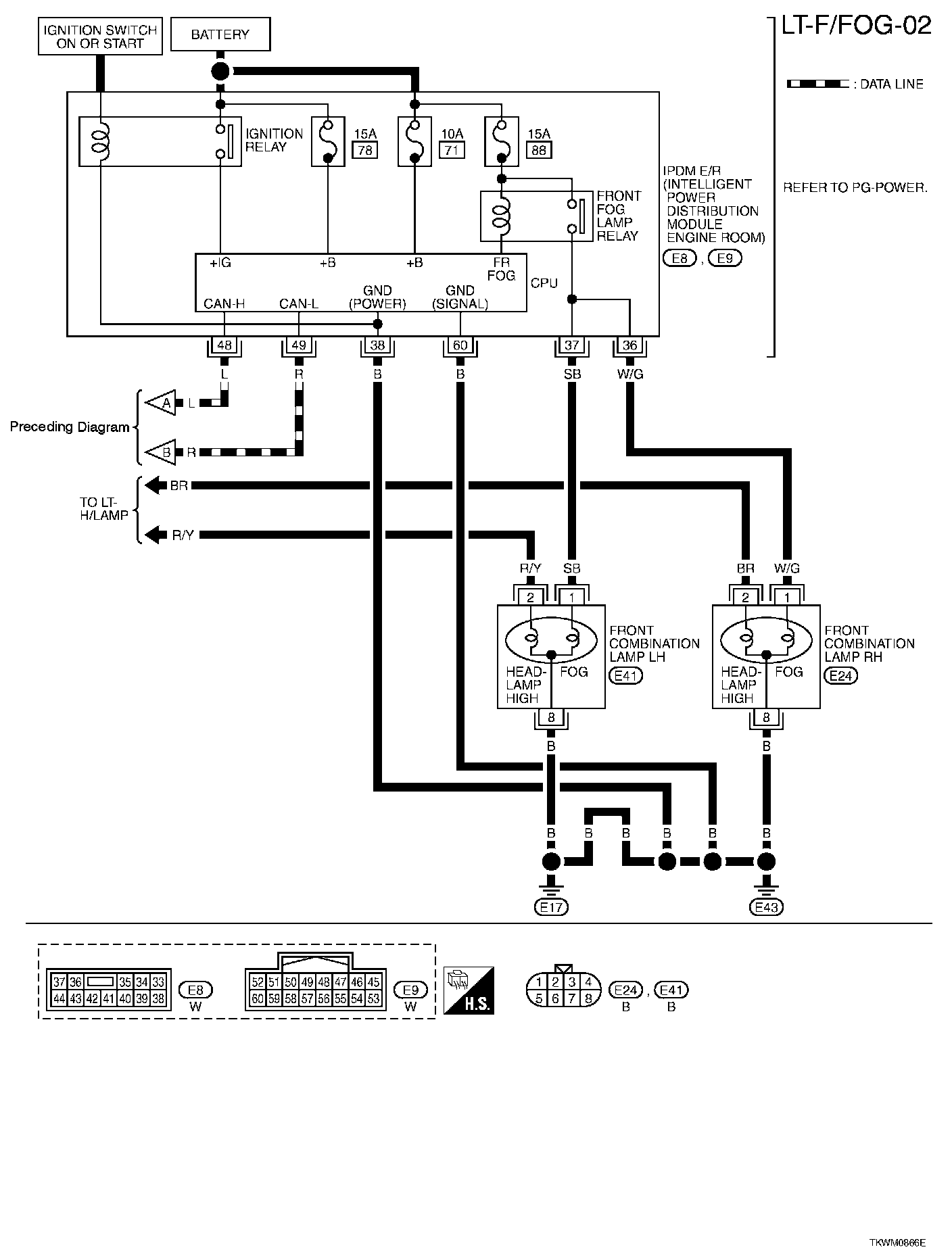

LT-F/FOG-02:

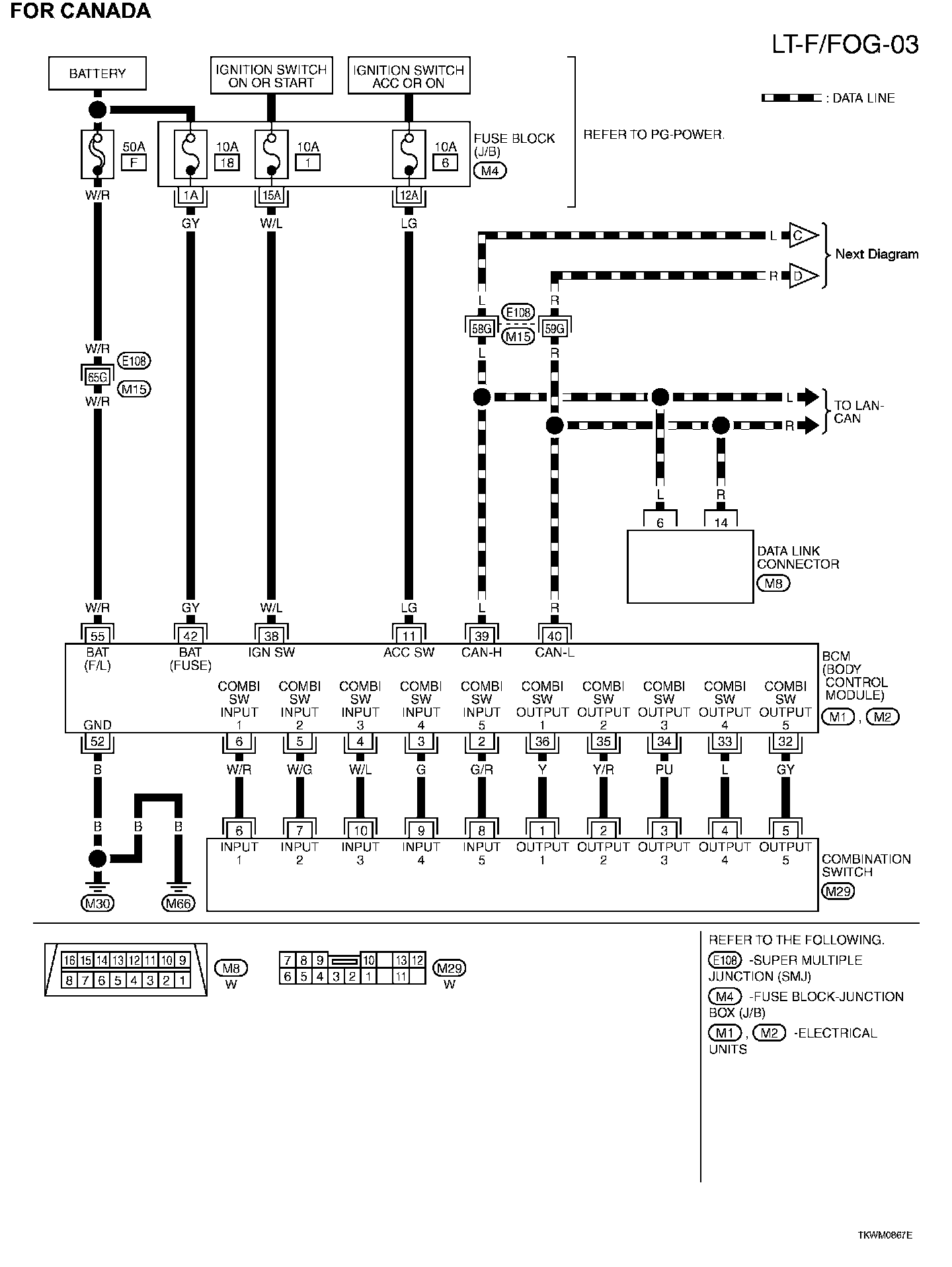

LT-F/FOG-03:

LT-F/FOG-04:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
