Oil Pan Gasket, Engine

OIL PAN AND OIL STRAINER:

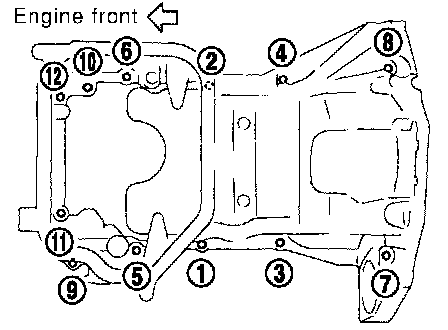

Oil Pan (lower):

Oil Pan (upper):

Oil pan (lower) 8.3 - 9.3 Nm (0.85 - 0.95 kgf-cm, 74 - 82 inch lbs.)

Oil pan (upper) 15.7 - 18.6 Nm (1.6- 1.9 kgf-cm, 12 - 13 ft. lbs.)

Oil strainer 19.6 - 23.5 Nm (2.0 - 2.4 kgf-cm, 15 - 17 ft. lbs.)
