Exhaust Manifold

Exhaust System:

Surface Distortion
Use a reliable straightedge and feeler gauge to check the flatness of exhaust manifold fitting surface.

Limit: 0.3 mm (0.012 inch)

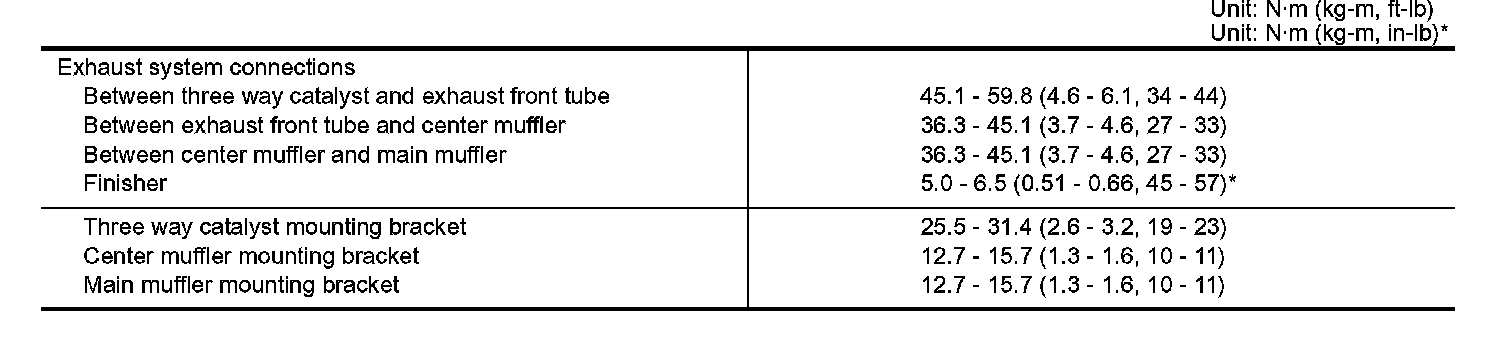

EXHAUST MANIFOLD AND THREE WAY CATALYST:

Exhaust Manifold Bolt Sequence - Right:

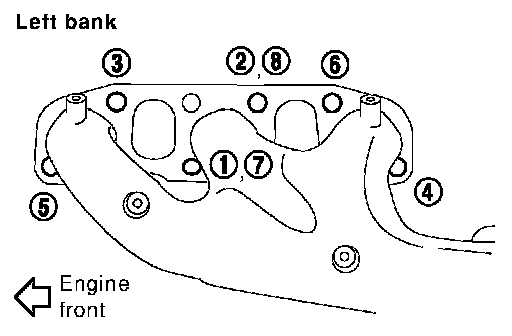

Exhaust Manifold Bolt Sequence - Left:

Exhaust Manifold Stud Bolts 12.7 - 16.7 Nm (1.3 - 1.7 kgf-cm, 10 - 12 ft. lbs.)
Exhaust manifold Cover 5.1 - 6.5 Nm (0.52 - 0.66 kgf-cm, 46 - 57 inch lbs.)
Exhaust manifold 28.5 - 32.4 Nm (2.9 - 3.3 kgf-cm, 21 - 23 ft. lbs.)
